Advantech PCL-81601 acquisition board

Product manual:

Main features:
Multi channel analog input: PCL-81601 usually provides multiple analog input channels, which can simultaneously collect multiple analog signals and is suitable for application scenarios that require multi signal processing.
High sampling rate: This acquisition board supports a high sampling rate, ensuring the ability to capture rapidly changing signals, which helps with accurate data acquisition and analysis.
High resolution: PCL-81601 typically has a high-resolution analog-to-digital converter (ADC), which means it can provide high-precision signal measurements.
Digital I/O function: In addition to analog input, PCL-81601 may also include digital input/output function, supporting the acquisition and control of digital signals.
Support multiple signal types: This acquisition board can process various types of signals, including voltage signals, current signals, etc., to adapt to different industrial signal types.
Software support: Usually equipped with drivers and APIs, making it convenient for users to develop on different operating systems. Meanwhile, it may also support multiple programming languages such as C, C++, LabVIEW, etc.
Application areas:
Industrial automation: used for real-time monitoring and control of various signals in industrial processes.
Testing and Measurement: Used for precise data collection and analysis in R&D and testing environments.
Data recording and analysis: Conduct long-term data recording and analysis in data intensive applications.
Main parameters:
Number of analog input channels: may be 16 or more, depending on the model configuration.
Resolution: 12 or 16 bits, which determines the measurement accuracy of the signal.
Maximum sampling rate: usually ranging from tens of kS/s to hundreds of kS/s, which determines the speed of signal acquisition.
Interface type: Typically ISA, PCI, or PCIe bus interface, used for connecting to a computer motherboard.
Input range: Supports multiple input voltage ranges, such as ± 10V, 0-5V, etc.

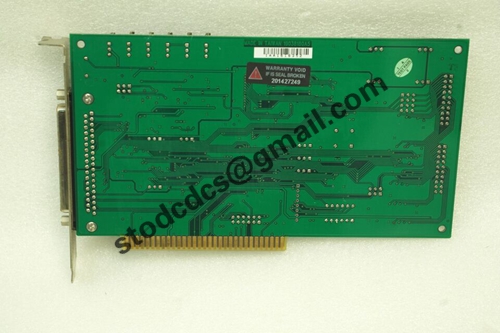

Product details picture:
