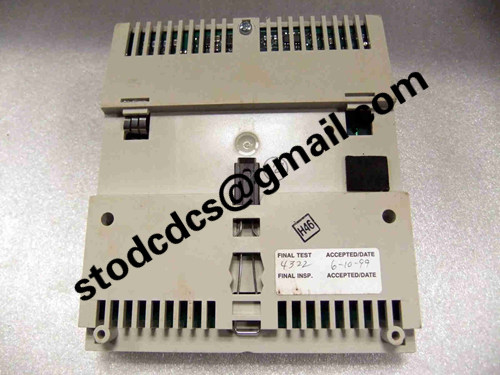

AEG MODICON 170-BDI-546-50 Input Module

Brand:AEG MODICON
Model:170-BDI-546-50
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AEG MODICON 170-BDI-546-50 Input Module

Product manual:

Introduction to AEG MODICON 170-BDI-546-50 Input Module

This 170-BDI-546-50 belongs to the Modicon 170 series and is typically used in distributed I/O environments. It is specifically designed for industrial process signal acquisition, emphasizing stability and fast response. In the system, it mainly plays the role of "digital signal input controller", used to transmit the real-time switch status of on-site equipment back to the control system.

Core Features

Moderate number of channels
Support multi-point digital input, suitable for group collection of on-site signals, such as limit, protection contacts, switch status, etc.

Reliable input type
Usually compatible with 24V DC standard switch quantity, with excellent anti-interference design, suitable for complex industrial sites.

Electrical isolation design
There is safety isolation between channels and between channels and the system, which improves the system's noise resistance and stability.

Modular structure
It can be combined with other I/O units in the 170 series to form a flexible remote I/O station, making it easy to expand and maintain.

Diagnostic function
Having basic diagnostic capabilities such as input status indication and anomaly detection, it facilitates quick on-site problem localization.

Typical application scenarios

Collection of switch values for power plants, chemical plants, and metallurgical production lines

Reading of limit signals for mechanical automation equipment

Safety interlock and status monitoring circuit

Multi point monitoring of distributed I/O sites
