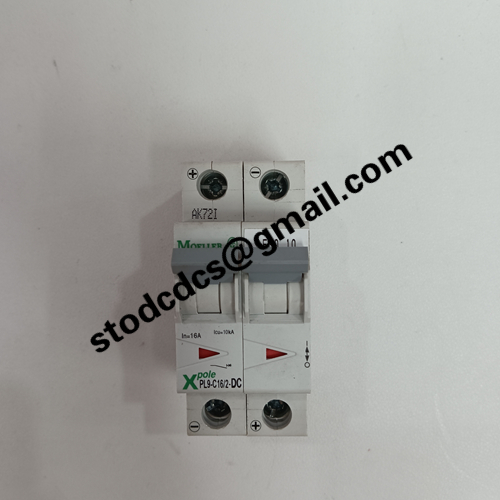

EATON PL9-C16-2-DC Miniature Circuit Breaker

Product manual:

EATON PL9-C16-2-DC is a miniature circuit breaker produced by Eaton Corporation specifically for DC circuit protection, belonging to the PL9 series.
This circuit breaker is designed specifically for DC power systems, with efficient overload and short-circuit protection functions, suitable for solar photovoltaic
Electric vehicle charging stations and DC power systems such as battery energy storage can ensure the safe operation of equipment and lines.

Main technical parameters
Rated current (In): 16 amperes

Number of poles: 2 poles

Rated operating voltage: DC system specific (usually DC 250V or higher, please refer to the product manual for details)

Release characteristics: C-curve, instantaneous release

Rated short-circuit breaking capacity: compliant with national and international standards, capable of withstanding short-circuit current surges of up to several thousand amperes

Installation method: rail type installation, convenient and fast installation and disassembly

Working environment temperature: Suitable for various industrial environments, generally ranging from -25 ° C to+70 ° C

Compliant with standards: Compliant with relevant standards such as IEC 60947-2 and GB/T 16917.1

Product Features
High reliability protection: responds quickly to overload and short circuit conditions, effectively protecting downstream equipment from damage.

Design adapted to DC characteristics: The internal design of the circuit breaker takes into account the extinguishing of DC arcs, ensuring both breaking capacity and safety performance.

Strong surge resistance: able to withstand surge currents generated by lightning strikes or switch operations in the power grid, reducing the risk of misoperation.

Easy to operate: with obvious switch position indication, supporting manual and automatic disconnection functions.

Compact size: saves installation space and is suitable for installation inside complex distribution cabinets and equipment.

application area
DC distribution protection for solar photovoltaic power plants

Protection of electric vehicle charging equipment

Safety protection of energy storage battery system

Branch protection in DC distribution system

Industrial DC control circuit
