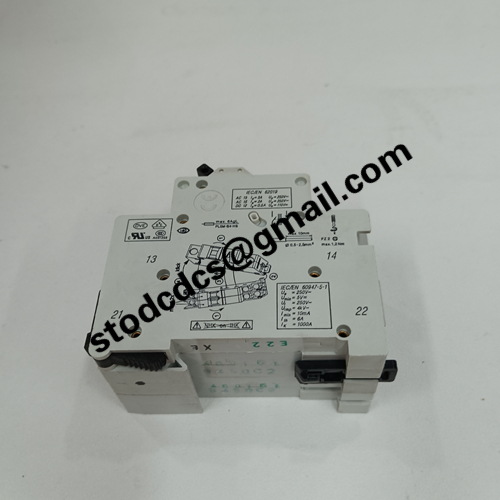

EATON PL9-C50-2-DC Circuit Breaker

Brand:EATON
Model:PL9-C50-2-DC
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

EATON PL9-C50-2-DC Circuit Breaker

Product manual:

EATON PL9-C50-2-DC is a miniature circuit breaker designed by Eaton Corporation specifically for DC power systems, belonging to the PL9 series.
It is mainly used for overload and short circuit protection of DC circuits, ensuring the safe and stable operation of equipment and lines.
This circuit breaker has high rated current capability and strong breaking performance,
Specially suitable for DC power supply systems such as solar photovoltaics, electric vehicle charging, and battery energy storage.

Main technical parameters
Rated current: 50A

Number of poles: 2 poles

Applicable voltage: DC voltage system, common DC voltage levels can reach 250V and above, specific parameters depend on the model version

Release characteristics: C-type instantaneous release, able to quickly respond to overload and short circuit situations

Rated short-circuit breaking capacity: up to several thousand amperes, ensuring safe circuit interruption in the event of a short circuit

Installation method: rail installation, supports quick disassembly and assembly

Compliant with standards: Compliant with relevant domestic and international standards such as GB/T 16917.1 and IEC60947-2

Environmental adaptability: Can adapt to working environment temperatures ranging from -25 ℃ to+70 ℃

Product Features

Strong surge resistance: able to withstand lightning strikes and operational surges in the power line, avoiding accidental tripping.

High reliability: The mechanical structure and electrical performance have been rigorously tested to ensure long-term stable operation.

Save installation space: Compact design, suitable for internal installation of various distribution boxes and equipment.

Easy to operate: with clear switch status indication, convenient for maintenance and operation.

Application scope
Photovoltaic power generation system: As a protective device on the DC side, it ensures the safety of photovoltaic modules and inverters.

Electric vehicle charging station: provides overload and short circuit protection for the DC circuit of the charging system.
