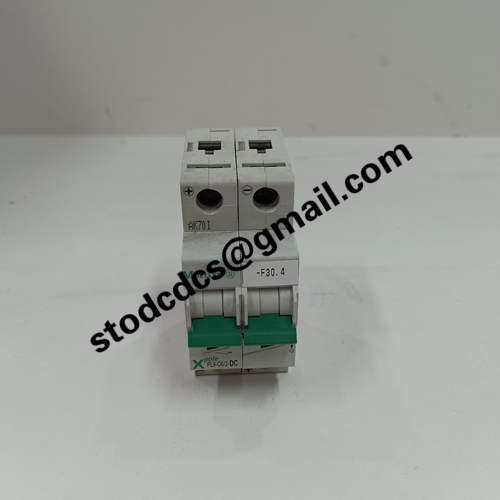

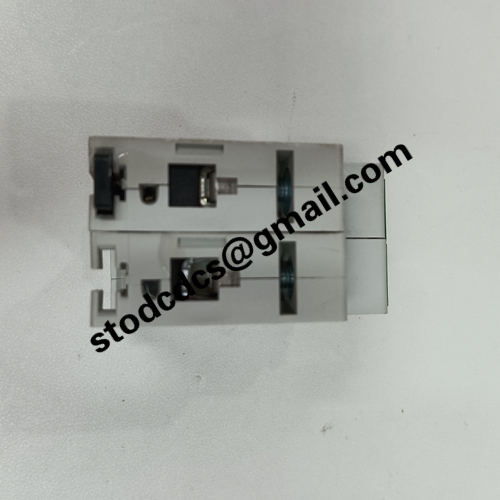

EATON PL9-C6-2-DC Miniature Circuit Breaker

Brand:EATON
Model:PL9-C6-2-DC
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

EATON PL9-C6-2-DC Miniature Circuit Breaker

Product manual:

EATON PL9-C6-2-DC is a miniature circuit breaker (MCB) designed specifically for direct current (DC) circuits, suitable for photovoltaic (PV) systems, energy storage, or other low-voltage DC applications. The following is the key information for this model:

Main characteristics
Rated current: 6A

Suitable for DC circuit protection up to 6 amperes.

Number of poles: 2 poles (2P)

DC voltage level:

Usually suitable for rated voltages up to 250V DC (specific details need to be confirmed in the manual, photovoltaic models may support higher voltages, such as 550V DC).

Breaking ability:

Generally 6kA (DC breaking capacity, subject to technical documentation).

Release characteristics:

Commonly known as C-type (universal type), suitable for capacitive loads or medium surge current scenarios.

Typical applications
DC side protection of solar photovoltaic systems (such as string, combiner box).

The charging and discharging circuit of the battery energy storage system.

Industrial control, telecommunications base stations, and other DC distribution systems.

Installation and compatibility
Standard DIN rail installation (width approximately 36mm, 2 modules).

Compatible with other Eaton PL series DC circuit breakers for easy system expansion.

precautions
Polarity requirement: DC circuit breakers must be strictly wired according to the positive and negative poles, marked with "+/L" and "-/N" terminals.

Environmental conditions: The working temperature range is usually -25 ° C to+60 ° C, avoiding humid or corrosive environments.

Certification standards: Complies with IEC/EN 60898, UL 489, etc. (specific to product label).
