IC3600AOAH1 amplifier card

Product manual:

GE IC3600AOAH1 is an amplifier card,
The Speedtronic series, belonging to GE, is mainly used for signal processing and amplification.
This module is widely used in turbine control systems,
To enhance and stabilize the input signals received from sensors or other devices,
To ensure the accuracy and reliability of the system operation.
Product Features
Signal amplification:
Provide high gain amplification function to enhance the strength of weak signals, making them suitable for subsequent processing and control.
Multi channel design:
Supports parallel processing of multiple signals, suitable for multi-point monitoring requirements of complex systems.
Signal filtering:
Integrated filtering circuit reduces noise and interference, ensuring the stability of the output signal.
Modular design:
Standardized card insertion structure, which can be directly installed into the backplane of the Speedtronic system for easy maintenance and replacement.
technical specifications
Input voltage:
Supports standard low-level signal input (usually in the millivolt or volt range).
Output voltage:
The amplified signal output typically ranges from 0-10V or 4-20mA (depending on system requirements).
Gain range:
Adjustable gain, typically ranging from 1x to 100x.
Signal bandwidth:
Supports signal amplification up to 20kHz.
Work environment:
Temperature range:- 20 ° C to+70 ° C.
Humidity range: 0% -95% (without condensation).
Size and interface:
Standardized dimensions, compatible with GE Speedtronic system.
Provide multi pin connectors to ensure stable electrical contact.
application area
Turbine control:
Amplify signals from temperature, pressure, or speed sensors to ensure accurate reading by the control system.
Industrial automation:
Suitable for signal processing tasks in complex automation equipment.
Energy system:
Used for key signal amplification in power plants and energy distribution systems.

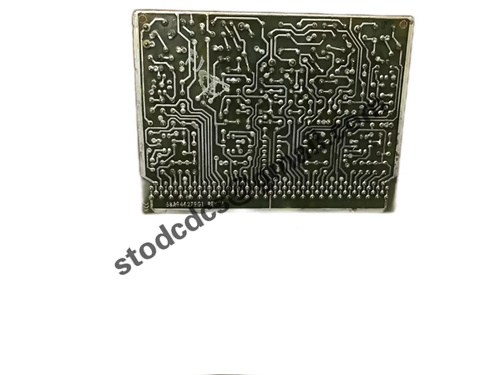

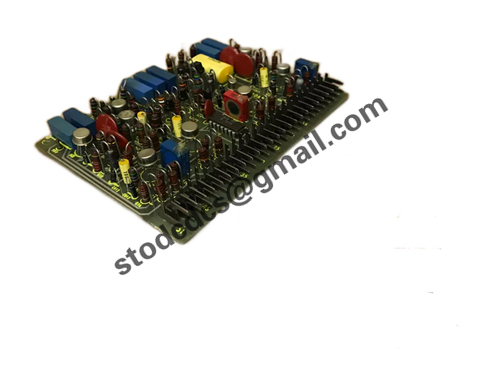

Product details picture:
