IC3600EPSB1 DC power supply board

Product manual:

GE IC3600EPSB1 is a DC Power Supply Board used in GE Speedtronic series control systems,
Provide stable DC power supply for control and signal processing modules.
This module is designed to be reliable and can work efficiently in various industrial environments, making it an important component of stable system operation.
Product Features
Stabilized power supply output:
Provide stable DC output with multiple voltage levels to meet the power requirements of different modules.
Efficient energy conversion:
Adopting efficient energy conversion circuits to reduce energy consumption and decrease heat generation.
Overload protection:
Built in overload protection mechanism to prevent circuit damage caused by short circuit or excessive load.
Modular design:
Standardized dimensions for easy integration and replacement with GE Speedtronic systems.
High reliability:
Industrial grade design, capable of stable operation in extreme temperatures and complex environments.
technical specifications
Input power supply:
AC input voltage range: 85-264V AC, frequency: 50/60Hz.
Output voltage:
Provide multiple stable DC outputs, such as 5V DC, 12V DC, 24V DC (specific voltage and current capacity depend on system requirements).
Output power:
Supports output power ranging from 50W to 150W (configured according to different models).
Protection function:
Overcurrent protection.
Overvoltage protection.
Short circuit protection.
Efficiency:
Up to 85% -90% (depending on input conditions and load conditions).
Work environment:
Temperature range:- 20 ° C to+70 ° C.
Humidity range: 0% -95% (without condensation).
Size and interface:
Plug in card design, suitable for standard Speedtronic system slots.
Multi pin connectors ensure the reliability of power transmission.
application area
Gas turbine control system:
Provide power to the turbine control module, sensors, and signal processing unit.
Industrial automation equipment:
Provide stable DC power supply for the core control module.
Power plant system:
Ensure the normal operation of complex power control systems.
Testing and Measurement System:
Provide stable power supply for high-precision measuring equipment.

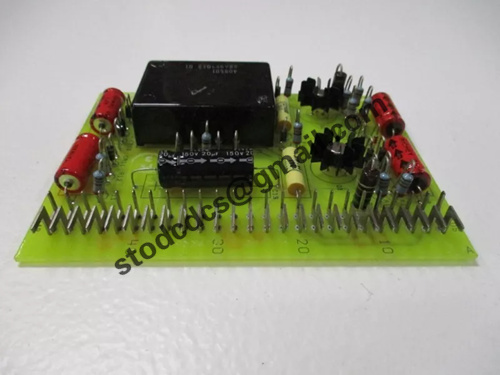

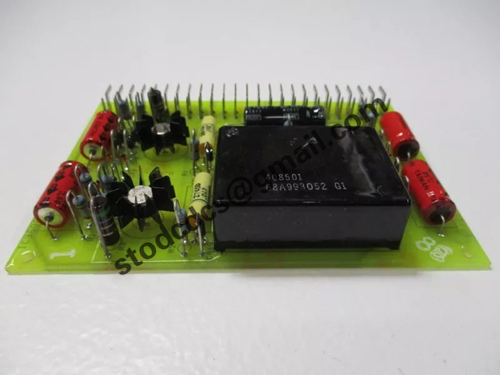

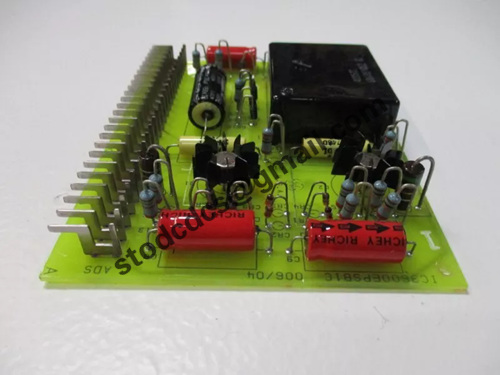

Product details picture:
