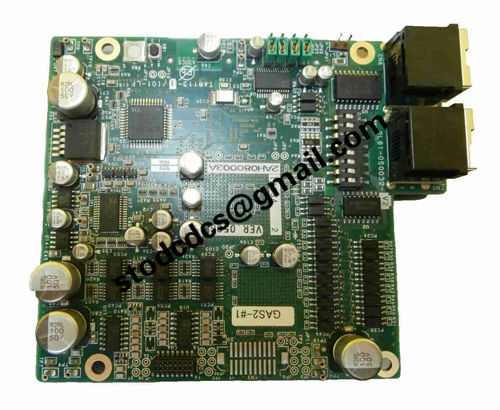

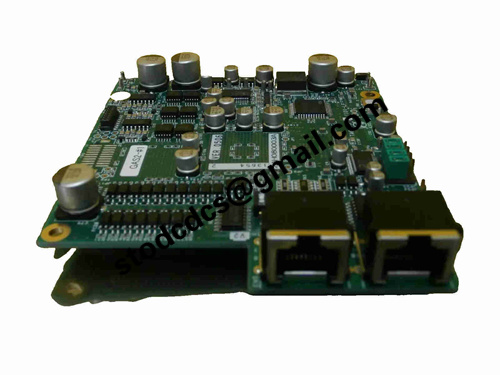

TEL Tokyo Electron 2L81-050032-V2 processor board

Brand:TEL Tokyo Electron
Model:2L81-050032-V2
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 2L81-050032-V2 processor board

Product manual:

Product model: 2L81-050032-V2
Manufacturer: Tokyo Electron Ltd. (TEL)
Component Category: Embedded Control Processing Unit/Core Processing Module

1、 Product Overview:
2L81-050032-V2 is a processor board used in Tokyo Electron semiconductor equipment,
Responsible for executing key tasks such as control logic calculations, data processing, instruction scheduling, and system communication within the device.

This board is usually equipped with an embedded CPU or microcontroller, serving as the "brain" of the device control system,
Undertake multi task scheduling and real-time control requirements to ensure the precise operation of equipment process flow.

2、 Main functions:
Function module description
Control instruction processing, parsing, and execution of process control program instructions
Data collection management processes sampled data from sensors and input modules
Output control execution module's action command output
Communication coordination and communication with the upper control system and internal modules
Running monitoring and monitoring system operation status, detecting abnormal alarms

3、 Technical parameters (refer to the design of a general TEL processor board):
Typical parameters or descriptions of the project
Processor type: Embedded CPU/MCU (such as ARM architecture or TEL custom chip)
Memory with built-in Flash and RAM for program and data storage
The input interface supports digital/analog input, including sensor signals
The output interface supports multiple DO, analog outputs, and PWM control signals
The communication protocol supports RS232, RS485, CAN, Ethernet, or TEL proprietary protocols
Common power requirements include 24V DC power supply and support for power management
Installation form: plug-in or rack mounted, convenient for maintenance and replacement

4、 Application areas:
This processor board is widely used in the following devices of Tokyo Electron:

Adhesive coating and developing equipment (ACT/Lithium series)

Plasma etching equipment (Unity/Telius series)

CVD/ALD thin film deposition equipment (Trias/Alpha series)

Wafer Handling System (EFEM, Load Port)

Process monitoring and safety control subsystem
