TEL Tokyo Electron 3M80-002733-11 Fuse Module

Product manual:

TEL Tokyo Electron 3M80-002733-11 Fuse Module
It is a circuit protection unit specifically designed for semiconductor manufacturing equipment, belonging to the standard safety module in Tokyo Electronics (TEL) equipment,
Mainly used to provide overcurrent protection for critical circuits in control systems, power systems, or signal channels,
Prevent abnormal current from damaging components or causing equipment failure.

1、 Product Overview
Project Content
Product Name Fuse Module
Product model 3M80-002733-11
Belonging to Tokyo Electron Ltd
Application category: Electrical protection module, overcurrent protection

2、 Core functions
Circuit overcurrent protection

Real time current limitation on power supply lines or control lines;

Automatically blow the fuse when overload or short circuit occurs, cutting off the faulty circuit.

Independent fuse partition

The module usually contains multiple fuse seats inside, which can protect multiple sub circuits;

Each fuse channel can be independently replaced for easy maintenance.

Cooperate with the main control system linkage

Some models may be equipped with fuse breakage detection function, which can provide feedback status signals to the main control system;

Facilitate quick fault location and system alarm linkage.

3、 Typical application areas
Internal power protection for wafer processing equipment

Used for safe isolation of control circuits and motor drive circuits in coating and developing equipment, etching machines, cleaning machines, etc.

Automated control system segmented circuit protection

Special current protection points for control boards, solenoid valves, sensors, and other components of each module.

High reliability industrial equipment

Meets the requirements of clean rooms and high stability, suitable for production systems that require long-term continuous operation.

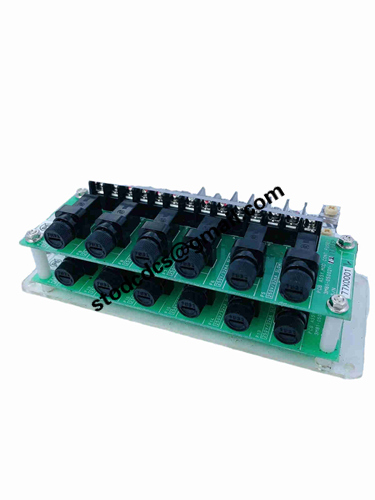

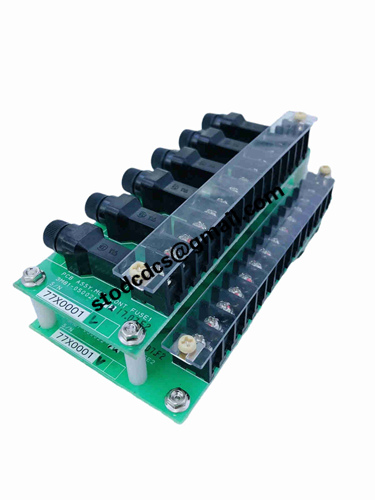

Product details picture:

3M80-002733-11
