TEL Tokyo Electron EC49-000005-11 Digital Electronic Display

Product manual:

Product model: TEL Tokyo Electron EC49-000005-11
type: Digital Electronic Display
Functional positioning: As a status indication and parameter display terminal for semiconductor equipment, it realizes real-time output of human-machine interface data

1、 Product Function Overview:
EC49-000005-11 Digital Electronic Display
It is a visual output component configured by Tokyo Electron (TEL) for its various semiconductor devices,
Mainly used for real-time display of equipment operating status, process parameters, alarm information, and operation prompts.
This monitor is typically installed on the front panel, console, or subsystem rack of the device,
Has high brightness, good contrast, and stable electromagnetic compatibility performance.

2、 Main application areas:
Real time display of process data

Display key process parameters such as temperature, flow rate, pressure, gas ratio, power supply, etc., to enhance operational intuitiveness.

Equipment operation status prompt

Real time feedback on device operating status (such as Processing, Idle, Error) to help operators quickly determine system status.

Alarm information and fault code output

Display device error codes and alarm content to assist maintenance personnel in fault diagnosis and troubleshooting.

Human Machine Interface (HMI) Terminal Expansion

Integrate with the main control system to achieve centralized management of information and distributed display across multiple terminals.

Modular control system integration

Can be used as a display component for local control units to enhance subsystem independence and modularity.

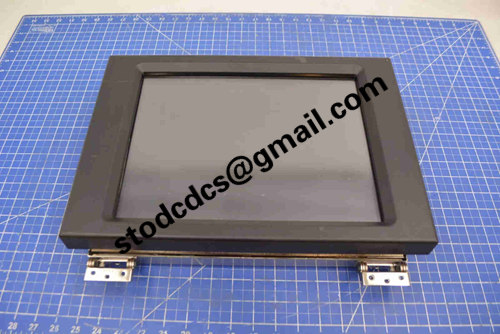

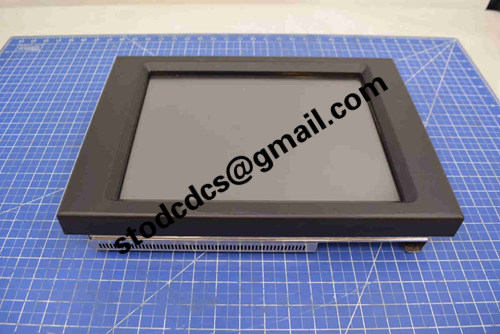

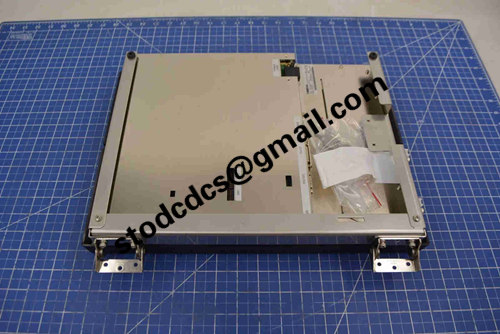

Product details picture:

EC49-000005-11
