AMAT Applied Materials 531796-2 9005 Fuse Board
Product manual:
1、 Product Overview
AMAT Applied Materials 531796-2 9005 fuse board is a circuit board component used for power protection of semiconductor equipment. This module is mainly used to provide overcurrent protection and power distribution functions for various branch circuits, and is one of the key electrical safety components in AMAT wafer processing and vacuum systems.
It achieves current overload protection and prevents circuit and component damage by installing independent fuses between the main power supply and downstream control boards and drive units.
2、 Technical parameters
The following parameters are typical specifications of similar AMAT fuse boards, and 531796-2 belongs to the high reliability version:
Product Model: 531796-2/9005
Product type: Fuse Board
Main functions: overcurrent protection, power distribution
Applicable systems: Applied Materials main control rack, power control framework
Input voltage range: DC 24V/48V or AC 115V (depending on configuration)
Fuse specifications:
Fast Acting type
Typical rated value: 1A – 10A, can be configured according to different circuits
Interface type: Multi pin terminal/PCB slot interface
Board type: multi-layer fiberglass board, flame retardant grade FR-4
Working environment temperature: 0 ° C -55 ° C
Structural dimensions: Standard 6U plug-in board size (approximately 233 × 160 mm)
Version number: Rev. E (partial batch printing)

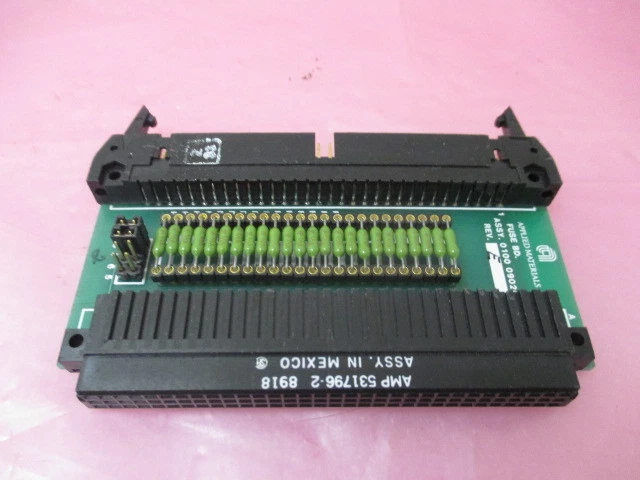

AMAT Applied Materials DP-200-5F Product details picture:
531796-2 9005
