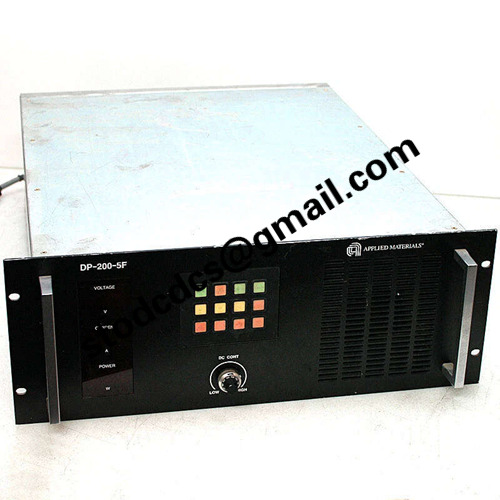

AMAT Applied Materials DP-200-5F Controller Module

AMAT Applied Materials DP-200-5F Controller Module

Product manual:

Known specifications and characteristics

Model: DP-200-5F

Manufacturer: Applied Materials (AMAT)

Input power supply: three-phase AC 200 V, 50/60 Hz

Output capacity: 200 V DC, maximum current 5 A

Control mode support: Constant Voltage (CV), Constant Current (CC), Constant Power (CP)

Control mode: can be controlled locally or remotely

These parameters have been confirmed by multiple sales/parts catalogs and are the main electrical specifications for this module.

Possible/common design features and functions (inferred based on module usage)

Multi mode control
Can switch between constant voltage, constant current, and constant power control modes according to load requirements to adapt to different situations (such as driving power supply, coil, heater, etc.).

Local and remote switching
The module has a local operating interface or switch, as well as a remote signal interface, making it easy to integrate into the device control system and issue commands from the upper level controller.

protection mechanism
To ensure the safety of equipment and modules, it is usually necessary to have:

overcurrent protection

Overvoltage/undervoltage protection

Short circuit fault protection

over-temperature protection

Fault alarm/status feedback

Stability and Quality
When outputting DC, it should have good voltage/current stability, low ripple, and anti-interference ability,
To meet the high requirements of power quality for semiconductor or precision equipment.
