ATLAS COPCO PF4000-C-HW Focusing Tool Controller
Product manual:
1、 Product Overview
ATLAS COPCO PF4000-C-HW
It is a high-performance power tool controller in the Atlas Copco PF4000 series,
Mainly used for focusing/tightening tool control in industrial assembly processes.
This controller is used in conjunction with electric tightening tools (such as Tensor ST series),
Through highly programmable torque control, angle control, and process monitoring functions,
Realize high-precision and high reliability bolt connection tasks.
2、 Technical parameters (brief)
Supported tool types: Tensor ST, SR, ES, ETX and other power tools
Control methods: torque control/angle control/time control/stage control, etc
Communication interfaces: Ethernet, RS232, I/O, ProfiBus, DeviceNet, EtherCAT (depending on configuration)
Data management function: supports data storage, traceability, parameter setting download
Human machine interface support: can be equipped with a touch panel or connected to the factory MES system
Installation form: Control cabinet installation or embedded installation on the production line
3、 Application Fields
ATLAS COPCO PF4000-C-HW is mainly used in the following industrial automation and high-end manufacturing scenarios:
1. Automobile manufacturing
Tightening of key bolts for engine and gearbox assembly
Chassis system bolt connections (such as suspension and steering systems)
High precision tightening operation of vehicle structural components
2. Rail Transit
Tightening control of key connecting components in train body assembly
Application of high-strength bolts in braking systems, suspension structures, etc
3. Aerospace
Precision assembly of aircraft structural components
Assembly of components with extremely high requirements for connection torque and angle
4. New energy and batteries
Bolt tightening control for power battery module assembly
Precision control of structural assembly of electric drive system
5. Home appliances and electronic manufacturing
Assembly operations with high repeatability and low torque requirements
Suitable for controlling small screws and high-speed batch assembly production lines
6. Industrial machinery manufacturing
Precision equipment structural component connection
Assembly process of industrial robots, machine tools, and other complete machines

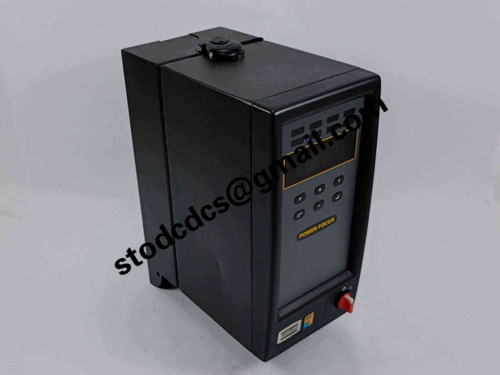

Product details picture:
PF4000-C-HW
