GIDINGS&LEWIS 502-03518-03 Analog Output Module
Product manual:
GIDINGS&LEWIS 502-03518-03 Analog Output Module
Product Features
Product Overview
Giddings&Lewis 502-03518-03 is an analog output module in the PiC900 control system series,
Mainly used to convert digital control signals into high-precision voltage analog signals to drive servo, process control, and various industrial automation execution devices.
This module provides stable multi-channel output, suitable for applications that require high accuracy and response speed.
Technical Specifications
Number of channels: 8 analog outputs
Output range: ± 11 V DC (nominal ± 10 V)
Resolution: 16 bits (65536 steps)
Maximum output current: ± 10 mA
Output update interval: 32 µ s
Output accuracy: ± 5% (within ± 11 V range)
Reset function: Automatically reset to 0 V (± 20 mV) when powered on or communication interrupted
Output ripple: less than 10 mV RMS (30 kHz)
Protection function: equipped with short-circuit current limiting protection
Indicator light: DIAG LED indicates diagnostic status
Power requirements:
+5 V：43 mA
+15 V：11 mA
–15 V：6 mA
Working temperature: 7 ° C~55 ° C
Storage temperature: -40 ° C~85 ° C
Humidity range: 5%~95%, no condensation
Size: Approximately 41 mm x 305 mm x 213 mm
Certification: Compliant with UL/CUL certification, possessing anti electromagnetic interference and anti vibration impact capabilities
Application scenarios
CNC machine tool and motion control system
Industrial process control, such as temperature, pressure, and speed regulation
Analog signal driven in high-speed automated production lines
Electrical servo control and testing equipment
Experiments and industrial applications that require multi-channel high-precision analog control

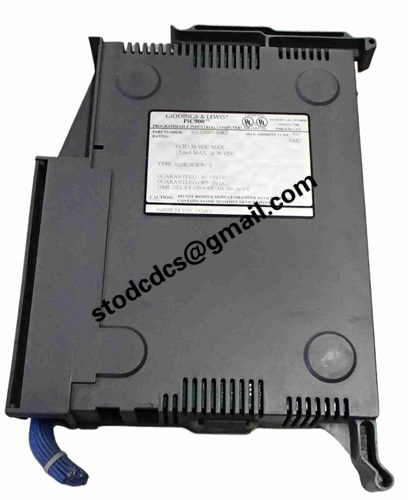

Product details picture:
