GIDINGS&LEWIS 502-03782-22 Encoder Module
Product manual:
Product Overview
The Giddings&Lewis 502-03782-22 encoder module is a functional module of the PiC900 series control system, mainly used to receive and process signals (A, B phase, and index pulses) from incremental encoders.
Technical Specifications
Module type: PiC900 series encoder input module
Number of channels: Supports 2-channel input
Counter resolution: 24 bits
Signal type: Incremental encoder A/B phase, supports index pulse input
Maximum input frequency: Standard version can reach 250 kHz, high-speed version can reach 5 MHz
Function support: pulse counting, position locking, speed detection
Installation method: Insert the PiC900 control system rack backplane
Anti interference: Complies with industrial environment anti-interference and anti-static standards
Application scenarios
Numerical Control Machine Tool (CNC)
Used in CNC equipment such as lathes, milling machines, and grinders to achieve precise position and speed feedback of the spindle and feed axis, ensuring machining accuracy.
Servo and motion control system
In multi axis servo drive systems, it is used to obtain motor position and speed information, form closed-loop control, and improve response speed and control stability.
Automatic production line
In high-speed packaging, assembly, and handling systems, it is used for real-time monitoring of mechanical positions to ensure synchronized actions and reliable processes.
Precision measurement and testing equipment
Applied to devices that require high-resolution position feedback, such as detection platforms and precision positioning platforms, to achieve micrometer level control.
Multi channel monitoring system
Provide flexible multi-channel scalability in situations where multiple axes or independent encoder signals need to be processed simultaneously.
Product advantages
High precision: 24 bit counter, supports high-frequency pulse input, ensuring accurate feedback data.
Strong reliability: modular design, suitable for industrial environments, with good anti-interference performance.
Flexible Expansion: Supports multi axis control requirements, facilitating system upgrades and expansions.
Good real-time performance: supports position locking and fast response, meeting the requirements of high-speed motion control.

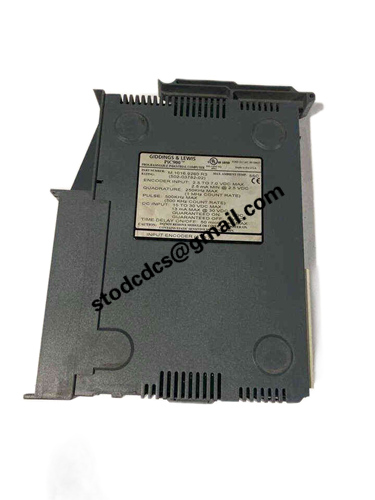

Product details picture:
502-03782-22
