IC693MDL655K input relay
Product manual:
Model: IC693MDL655K
Brand: GE Fanuc
Series: Series 90-30
Type: Digital Input Module (Relay Contact Type Input)
Technical parameters:
Input points: 16 points
Input type: Passive dry contact input (relay or mechanical switch closed)
Voltage range: 12-24 VDC (recommended 24V)
Current per point: approximately 7-10 mA
Input isolation: every 8 points is a set of photoelectric isolation
Response time: less than 10 milliseconds
Status indication: Each input point is equipped with LED indicator lights
Channel grouping: 2 groups, each with 8 points, sharing a common terminal (COM)
Installation method: Plug in, suitable for 90-30 rack slots
Wiring instructions:
Connect the other end to the positive pole of an external 24VDC power supply.
The negative pole of the external power supply is connected to the COM (common terminal) of the group.
The module does not supply power to the input device and requires an external DC power supply.
Precautions for use:
The input device must be closed in order to be recognized as a valid signal.
Not suitable for high-speed signal acquisition (such as encoder pulse input).
Typical application scenarios:
Status acquisition of industrial buttons, limit switches, selection switches, etc
Passive input signal acquisition for safety doors, emergency stop buttons, alarm triggers, etc
Used in conjunction with the output module to achieve complete input/output logic control

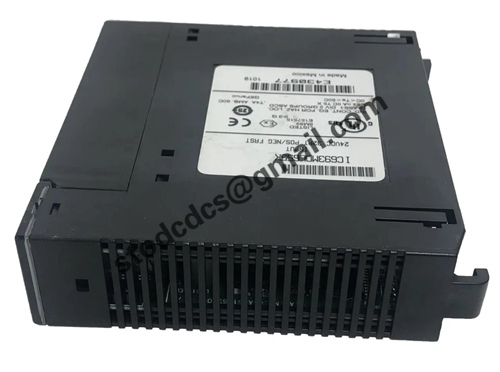

Product details picture:
