KLA Tencor 61-603316-02 Connection Board
Product manual:
The KLA Tencor 61-603316-02 connector board is mainly a VGA 16 bit ISA interface card used for video output. Its typical application areas are as follows:
Product application areas:
Semiconductor Manufacturing
Used for wafer defect detection equipment, such as the KLA Tencor 6200 series.
Provide image output of detection results to the display to assist engineers in determining the process status.
Automated testing of wafer fabs
Installed in the industrial PC inside the device, it outputs image signals through VGA interface for terminal operation.
Materials Analysis and Research Laboratory
Provide a visual interface for detecting images to facilitate researchers in analyzing material surface properties.
Equipment maintenance and debugging
Engineers use this card to obtain image output and diagnose system status when repairing and calibrating equipment.
Functional features:
Interface: 16 bit ISA bus
Output: Standard VGA video signal
Installation location: Inside the main control system of KLA Tencor detection equipment
Function purpose: Image data display, user interface output, auxiliary detection graphic display

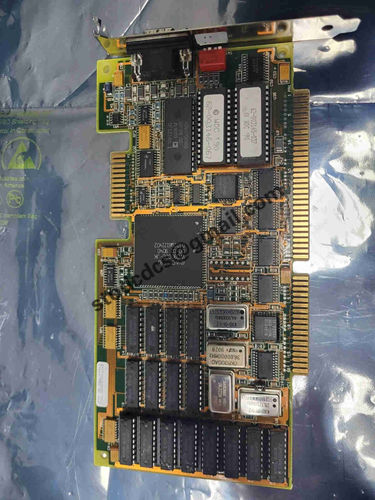

Product details picture:
