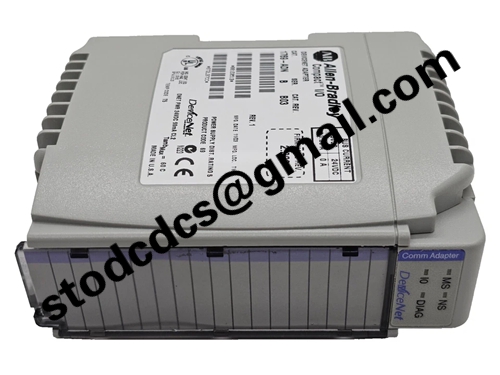

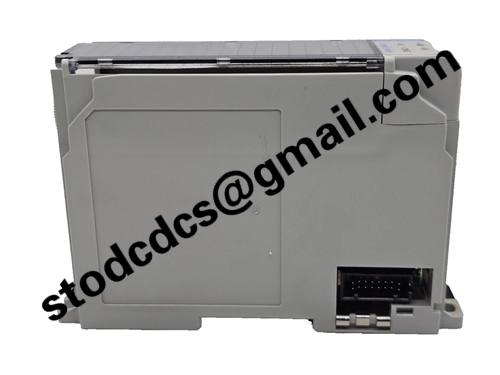

1769-ADN adapter module

Model:1769-ADN
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

1769-ADN adapter module

Product manual:

1769-ADN Adapter Module (CompactLogix/MicroLogix Extended Communication Module)

1、 Product Overview

Used to connect 1769 series I/O modules to DeviceNet network
Used as a remote I/O adapter
Support data communication with PLC or main station
Commonly used in distributed control systems

2、 Main features

Supports DeviceNet fieldbus protocol
Can connect up to 30 1769 expansion I/O modules
Provide high-speed and stable data communication capability
Support automatic device recognition and configuration
LED status indicator for easy diagnosis and maintenance
Support hot plugging (under some system conditions)
Modular design, easy to install
Suitable for remote I/O expansion applications

3、 Technical parameters

Communication protocol: DeviceNet
Power supply method: Powered by the 1769 system power supply
Installation method: DIN rail or panel installation
Connectivity: Supports up to 30 I/O modules
Working temperature: 0 ° C to 60 ° C
Network speed: 125 kbps/250 kbps/500 kbps

4、 Application Fields

Remote I/O expansion of automated production line
Logistics and Transportation System
Packaging Machinery Control
Automotive manufacturing industry
Distributed Control of Industrial Equipment

5、 Product advantages

Reduce wiring costs and achieve remote control
Improve system flexibility and scalability
Stable communication and strong anti-interference ability
Easy maintenance and intuitive fault diagnosis
