193X238AAG01 signal isolator
Brand:GE
Model:193X238AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
193X238AAG01 signal isolator
Product manual:
193X238AAG01 Signal Isolator
product overview
193X238AAG01 is a dedicated signal isolator module in the GE 193X series industrial control board,
Mainly used for safe isolation and transmission of analog or digital signals between different potential systems.
It can prevent interference from grounding circuits, electrical noise, or high voltage backflow from affecting the main control system, ensuring the stable and reliable operation of the control system.
Main functional features
Signal electrical isolation: achieving complete electrical isolation between input and output channels,
The typical isolation voltage can reach 2500V.
Multiple signal compatibility: supports various industrial signal forms such as voltage, current, and switch quantity.
Low drift, high precision: Internally equipped with precision isolation amplifiers,
Maintain the linearity and accuracy of the input signal.
Enhanced anti-interference: Built in filtering and noise suppression circuit, especially suitable for high interference industrial environment applications.
Onboard diagnostic function: It has signal fault indication and can monitor input abnormalities, signal interruptions, and other states.
Technical Parameter
Input signal: 0-10V DC, 4-20mA, ± 5V, ± 10V (depending on configuration)
Output signal: linearly corresponding to the input, in the form of voltage or current
Isolation voltage: minimum 1500V RMS, typical 2500V RMS (input-output power supply)
Response time:< 10ms, suitable for real-time feedback in industrial control
Accuracy: ± 0.1% FS, suitable for precision control applications
Temperature range:- 20 ° C to+70 ° C
Power requirement: ± 15V DC or 24V DC (powered by the system motherboard)
Installation structure: slot type installation, compatible with GE 193X control rack system
application area
PLC and DCS system signal isolation
Industrial analog signal conditioning and protection
Potential isolation between control room and on-site equipment
Feedback signal isolation in motor control and frequency converter systems
Signal Safety Transmission in Power Automation and Process Control

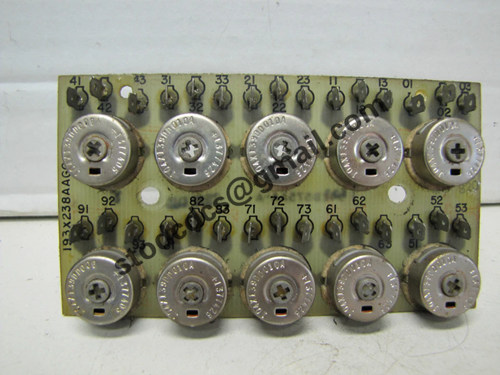

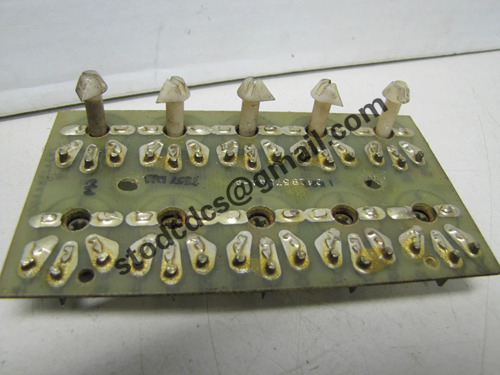

Product details picture:
