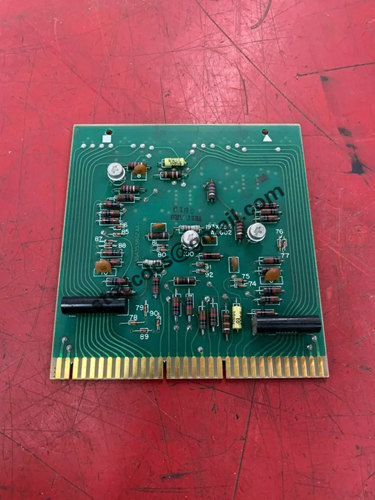

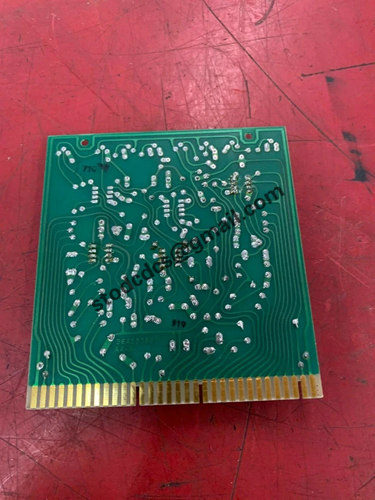

193X241AAG01 system card module

Brand:GE
Model:193X241AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X241AAG01 system card module

Product manual:

193X241AAG01 System Interface Card Module

Product Introduction
193X241AAG01 is a key control and communication interface module in the GE (General Electric) 193X series control system, typically serving as the coordination hub of the main system, responsible for core functions such as bus communication, command transmission, data synchronization, and fault management. This module has high reliability and anti-interference capability, suitable for power control, heavy industrial automation, and process control systems.

Main functional features
Central system coordination: As a communication bridge between the main control unit and each sub board, it enables coordinated operations between multiple boards.

System monitoring and management: Provides management functions such as system status summary, fault reporting, and initialization control.

Signal scheduling and conversion: Standardize input and output signals and unify communication formats between various types of boards.

Built in diagnostic function: equipped with self checking logic and error detection function, improving system operation stability.

Redundancy support: Can be used as part of a dual machine hot backup system, supporting high availability configurations.

Technical Parameter
Working voltage: ± 15V DC/± 24V DC (powered by the main frame)

Communication method: 193X series dedicated system bus, compatible with TTL or RS standard signals

Input/output interface: multi-channel signal processing interface, compatible with other control board modules

Cooling method: relying on the ventilation system of the main cabinet, low heat generation

Environmental adaptability: Operating temperature from -20 ° C to+70 ° C, relative humidity<85%, no condensation

Installation method: Standard 193X plug-in card installation, supports hot plugging (depending on system configuration)

Application scenarios
Power Plant Automatic Control System (DCS)

Large scale turbine control system
