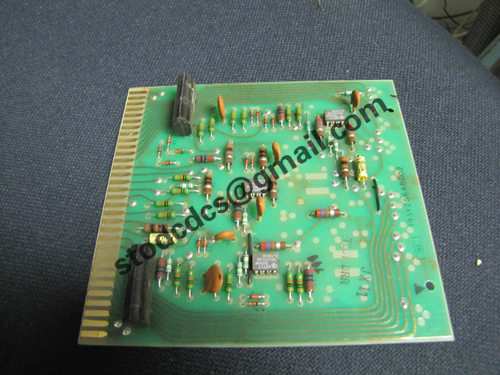

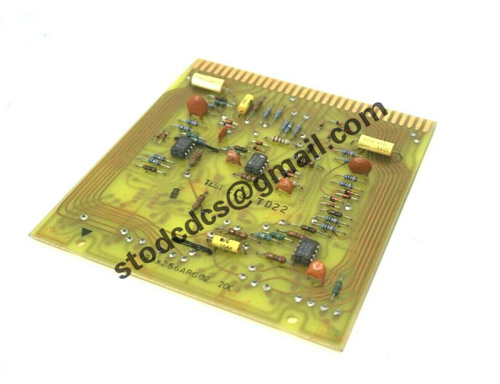

193X256ABG02 amplifier board

Brand:GE
Model:193X256ABG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X256ABG02 amplifier board

Product manual:

The GE 193X256ABG02 amplifier board is an analog signal amplification module in the GE (General Electric) 193X series control system,
Widely used in GE industrial drive control systems, especially in DC speed control drives and large motor control devices.
It is an upgraded or variant model of 193X256ABG01, mainly used to enhance and condition input signals for further control processing by the system.

Product Overview:

Model: 193X256ABG02

Category: Analog Signal Amplification Circuit Board

Series: GE 193X series control module

Purpose: Signal amplification, isolation, and conditioning, suitable for closed-loop control systems

Core functions:

signal amplification
Amplify external feedback signals (such as speed, voltage, current) to appropriate control levels,
For subsequent control logic module processing.

Noise filtering and signal conditioning
Provide electrical isolation and filtering functions to improve the system's anti-interference ability,
Ensure signal purity and control accuracy.

Analog signal interface conversion
Low level analog signals can be converted into high-level control signals, or used in conjunction with digital/analog converters (ADC/DAC).

Application areas:

Industrial motor speed control system (especially DC drive)

GE Mark series control systems (such as Mark II, Mark IV, etc.)

Excitation control system for power plants

Automation control equipment for heavy industries such as energy, metallurgy, and papermaking

Railway traction and electric drive devices
