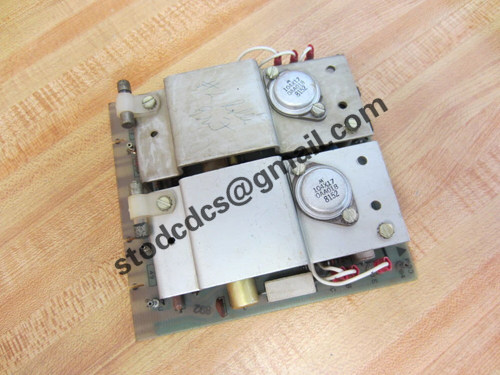

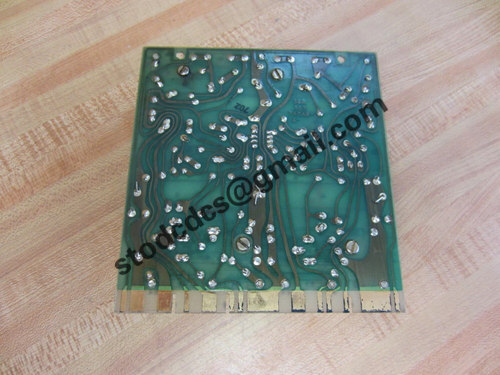

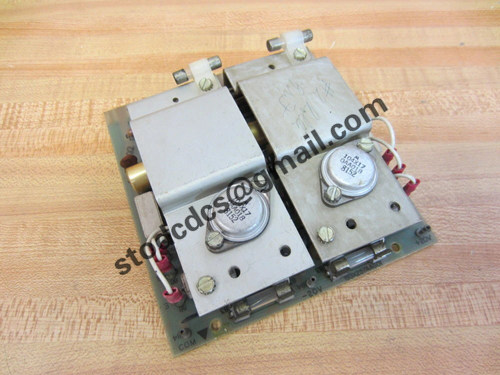

193X257AAG01 power board

Brand:GE
Model:193X257AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X257AAG01 power board

Product manual:

The GE 193X257AAG01 power board is a critical power module in the GE (General Electric) 193X series industrial control systems.
This board is usually used as the power supply core for DC speed controllers or industrial control systems,
Provide stable and reliable voltage and current support for multiple sub modules in the control system.

1、 Product basic information:

Product model: 193X257AAG01

Type: Power Supply Board

manufacturer: GE Industrial Systems

Series affiliation: GE 193X modular control platform

Main function: Provide multi-channel stable power supply to ensure the normal operation of the control system

2、 Functional features:

Multi channel power output
Provide DC power outputs of different voltage levels (such as ± 15V, 5V, etc.),
Provide power to modules such as signal processing, amplifiers, and logic control.

High stability and low noise
The output voltage has small ripple and high stability, making it suitable for use in precision signal processing circuits,
Ensure system accuracy and reliability.

Good compatibility
Designed for use in GE's speed control system,
Especially when used in conjunction with GE's 193X driver series (such as the DC300 system).

3、 Typical application areas:

DC Drive Systems
As the core power supply module of the speed controller, it drives the control board, signal processing board, and feedback circuit.

Power plant control system
Used in control equipment for steam turbines and gas turbines to supply power to control and signal modules.

Automation Control in Metallurgy and Steel Industry
Provide stable power supply for the rolling mill, motor control, and speed regulation system.

Chemical and Paper Industry
Used for large-scale continuous industrial process control systems, providing continuous and stable power support.

Railway traction system
Used in locomotives or traction systems to ensure power supply for various control units.
