193X260BAG01 Coordination Board

Product manual:

The GE 193X260BAG01 Coordination Board is a critical control logic circuit board in the GE (General Electric) 193X series control system. It mainly undertakes the tasks of signal coordination, control logic transmission, and synchronous processing between various modules within the system, and is an indispensable central unit in large-scale DC drive control systems.

1、 Product basic information:
Model: 193X260BAG01

Type: Coordination Board/Coordination Control Card

Brand: General Electric (GE)

Series: 193X Control Module Series

Functional positioning: Control logic coordination, module linkage, signal timing control

2、 Main functions:
Control logic coordination
Used to coordinate the workflow between multiple control units such as speed control board, amplifier board, power board, etc., ensuring the correct and error free logical relationship of signals.

State synchronization management
Implement synchronization of operating status between different modules, such as start/stop commands, fault status broadcasting, etc.

Command and feedback processing
Receive and manage input commands from the operation console or main control module, and distribute them to submodules.

System fault linkage mechanism
When a submodule fails, it can issue a unified protection or shutdown command to prevent equipment damage.

3、 Typical application areas:

Application industry specific equipment
Power plant control system, turbine excitation system, host start/stop logic control
Signal Coordination Center in Large Steel Rolling Control System of Steel and Metallurgical Industry
Linkage and signal conditioning processing between multiple control loops in chemical process automation
Coordination between controller and monitoring unit of rail transit traction system
Multi motor synchronous control and redundant signal processing in industries such as papermaking, mining, and elevators

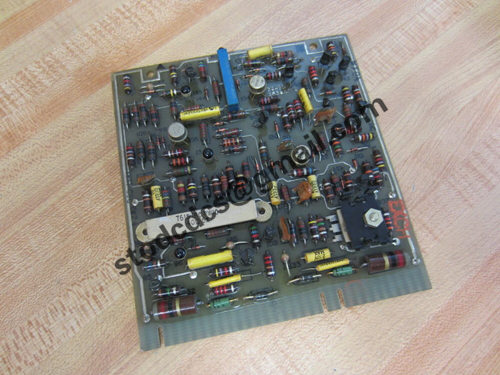

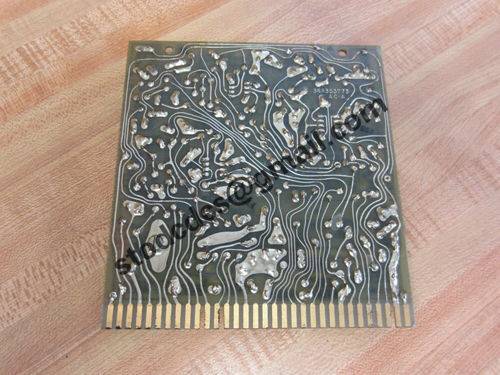

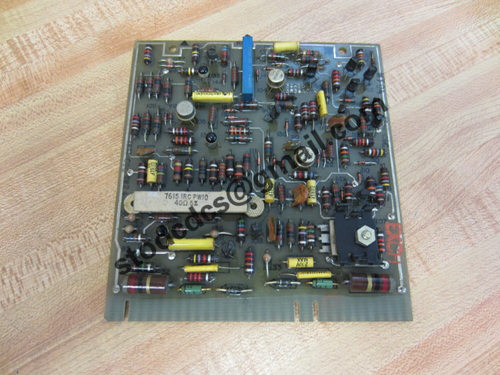

Product details picture:
