193X277ACG01 detector module

Product manual:

GE 193X277ACG01 Detector Module
It is a key signal processing component in the GE 193X series industrial control system,
Mainly responsible for detecting, collecting, and preprocessing input signals from sensors or external signal sources.
This module is commonly used in complex automation systems, such as power systems
In drive control systems or process control systems, it is used to achieve high-precision monitoring and feedback.

1、 Basic Product Information

Project Content
Product model 193X277ACG01
Product Name: Detector Module
Manufacturer GE (General Electric)
Series Belonging to 193X Control System Series
Installation method plug-in card, suitable for 193X rack
2、 Main functions

Function module description
Signal detection collects analog/digital input signals from sensors, voltage/current monitoring devices, etc
Signal shaping amplifies, filters, isolates, and threshold signals to output standard control signals
Status judgment is based on detection signals to determine the operating status (such as overload, overvoltage, abnormal temperature)
Alarm triggered: When the signal exceeds the set range, the system alarm or protection mechanism can be triggered
Data feedback will feed back the detection results to the main control system, achieving closed-loop control logic
3、 Technical parameters (typical)

Parameter category description
Input signal types include voltage, current, logic level, analog sensing signal, etc
Multiple input channels (specific quantity depends on product version)
Supply voltage ± 15V DC or+5V DC, depending on system configuration
Fast signal response time (usually less than 1ms), suitable for dynamic monitoring
Bus communication between output interface and central controller, relay contacts or analog signal output
Working temperature -20 ℃~+60 ℃, industrial temperature rating

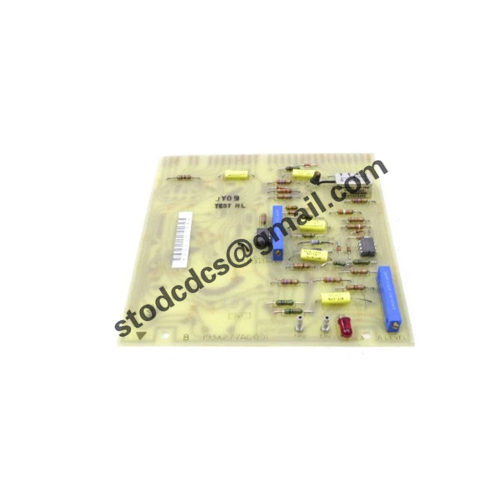

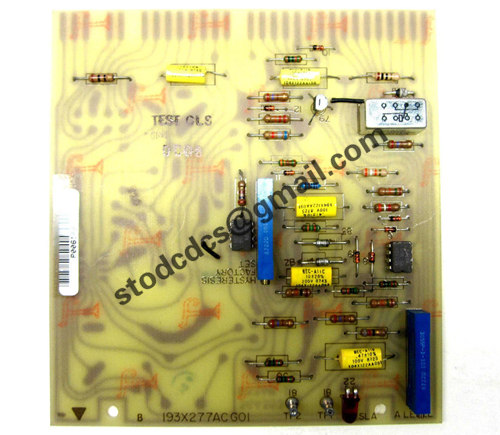

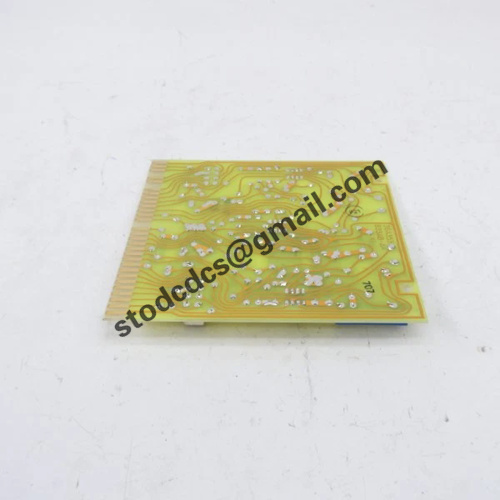

Product details picture:
