193X277ACG02 signal level detector

Product manual:

GE 193X277ACG02 Signal Level Detector
（Signal Level Detector Module）
It is a precision module in the GE 193X series control system,
The main function is to detect whether the input signal has reached the set level threshold,
And trigger the corresponding control logic or alarm mechanism accordingly.
It is widely used in industrial automation, power systems, and drive control systems.

1、 Basic Information

Project Content
Product model 193X277ACG02
Product Name: Signal Level Detector
GE 193X Control Module Series
Function type: Level detection, threshold judgment, alarm triggering
Installation method: Plug in installation (compatible with 193X rack)
2、 Main functions

Function Item Description
Level detection monitors input analog or digital signals in real-time to determine if they exceed the set level threshold
The threshold comparison module is internally equipped with a comparison circuit that compares the input signal with a set reference value
If the input signal is above or below the threshold, an alarm can be triggered through relay output, logic signal, or other means
Control triggering can serve as a conditional triggering module to activate other control function modules in the system
Signal isolation provides electrical isolation to prevent external interference or voltage fluctuations from affecting the core components of the control system
3、 Technical parameters (typical)

Parameter Item Parameter Description
Input signal type: Analog voltage, current signal (0-10V, 4-20mA, etc.)
Detection accuracy ± 0.5% F.S. (depending on version)
The threshold setting range can be adjusted (the specific value is determined by hardware or jumper configuration)
Response time<1ms
Output methods: switch quantity (dry contact), TTL logic signal, relay
Power supply requirement ± 15V DC or+5V DC (depending on the system)
Working temperature -20 ° C~+60 ° C

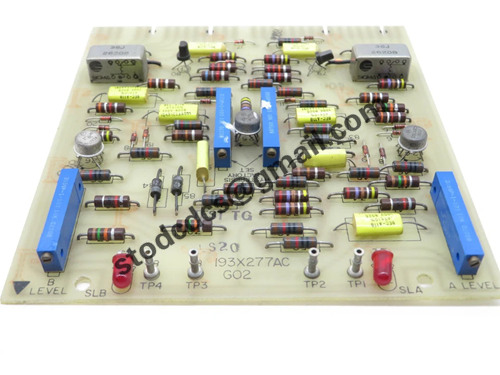

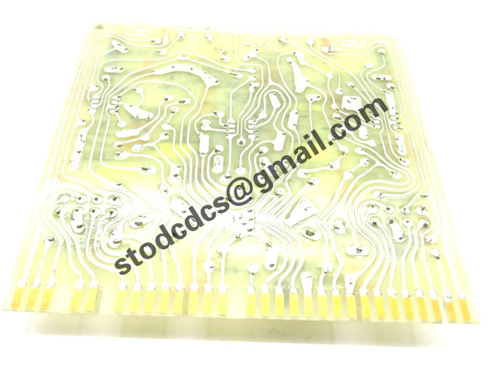

Product details picture:
