193X279AAG03 relay module

Product manual:

The GE 193X279AAG03 relay module is a multi-channel output control module in the General Electric (GE) 193X series,
The main function is to convert logical control signals into relay control signals that can drive industrial loads.
It is commonly used in industrial automation and power control systems,
As a bridge between control devices and execution components, it achieves high reliability signal output and load control.

1、 Basic Information

Project Content
Product model 193X279AAG03
Product Name: Relay Module
Manufacturer GE (General Electric)
Series 193X Industrial Control System Module
Function type control output, signal conversion, load drive
Installation method: Plug in installation on GE control system rack
2、 Function and Function

Function item description
Logic output receives signals from controllers (such as PLCs or main control boards),
Drive relay for load switch control
Signal conversion converts low voltage control signals into switch signals for high-power electrical loads
The electrical isolation control circuit is completely isolated from the executing load, improving system stability and safety
Multi channel control modules typically have multiple relay outputs and can simultaneously control multiple external devices
Status feedback with LED indicator lights or signal ports, real-time reflection of relay action status
3、 Technical parameters (typical)

Parameter Category Parameter Description
Control voltage 5V/24V DC (depending on system requirements)
Output voltage supports up to 250V AC or 30V DC (depending on relay specifications)
The number of channels is usually 4-8 channels (please refer to the module label or technical documentation)
Relay type electromagnetic relay (may be configured with DPDT or SPDT)
Maximum switch capacity per channel 5A@250VAC Or 5A@30VDC
Response time within approximately 10 milliseconds
Working temperature -20 ° C to+60 ° C
Insulation voltage control and load terminal ≥ 1500V electrical isolation

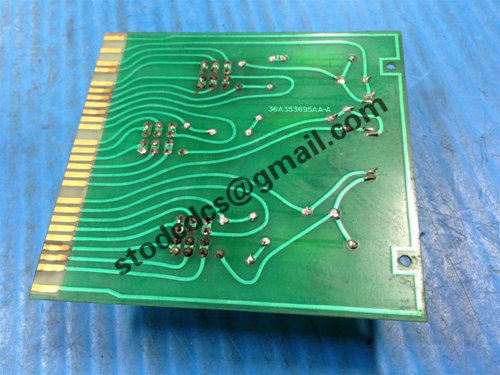

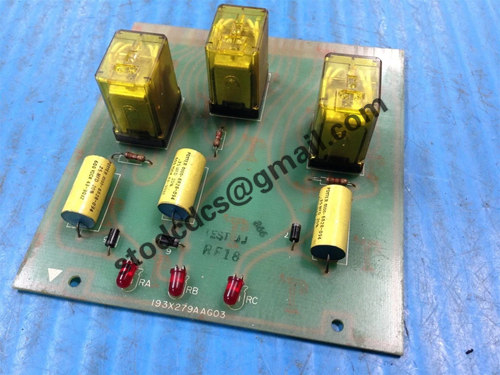

Product details picture:
