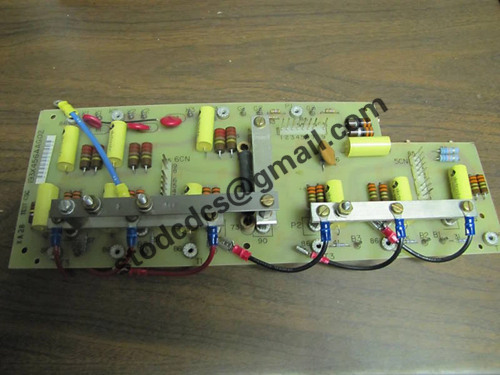

193X456AAG02 power module

Brand:GE
Model:193X456AAG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X456AAG02 power module

Product manual:

Product Name: GE 193X456AAG02 Power Module
manufacturer: General Electric (GE)
Product Series: 193X Control System Series

Function description:
193X456AAG02 is an industrial power module used to provide stable multi-channel DC voltage to other boards in GE's 193X series control system. It mainly realizes the conversion from AC to DC, has voltage rectification, filtering, and voltage stabilization functions, and provides basic electrical protection measures to ensure the stable operation of the control system.

Technical parameters (common configurations, please refer to the module nameplate for details):

Input voltage: 115V AC or 230V AC (depending on system configuration)

Output voltage:

+5V DC (for logic control section)

± 15V DC (for analog signal processing)

Optional other auxiliary outputs (such as+24V DC)

Structure: Slot style installation, compatible with GE 193X rack system

Main components:

Industrial power transformer

Rectification bridge and large capacity filtering capacitor

Voltage regulator circuit (which may include discrete voltage regulators or integrated chips)

Safety protection components (such as fuses, thermistors)

Typical application scenarios:

GE 193X Control System Power Supply Module

Power plant automation system

Industrial drive systems (such as motor drives, DC/AC control systems)

Old industrial control platforms in metallurgy, chemical industry, mechanical manufacturing and other fields

Maintenance and replacement suggestions:

Check whether the electrolytic capacitor is swollen or leaking, and whether the filtering performance is degraded

Check if there is any output fluctuation or no voltage phenomenon in the voltage regulator circuit

Pay attention to the cleanliness of the interface and ensure good contact between the slots

If it cannot be repaired, it is necessary to find alternative models that are compatible with electrical parameters or entrust a professional organization to renovate them
