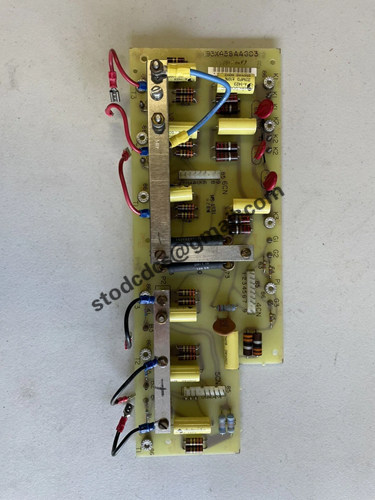

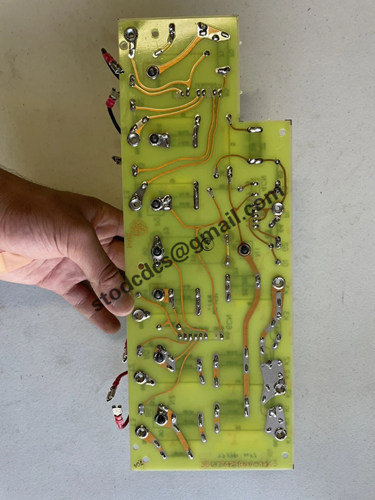

193X456AAG03 relay card

Brand:GE
Model:193X456AAG03
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X456AAG03 relay card

Product manual:

PRODUCT INFORMATION

manufacturer: General Electric (GE)

Product Series: 193X Control System Module

PRODUCT FUNCTION
193X456AAG03 is a relay control card in the GE 193X series control system. Its core function is to drive onboard relays through logic control signals, achieving isolation and control between high and low voltage circuits. Mainly used for driving commands, circuit switching, alarm output, etc.

FEATURES

Project Description
The control mode is triggered by the logic board of the control system (such as CPU, driver card) issuing a trigger signal
Output type: Electrical relay contact output (normally open/normally closed)
Multiple channels (usually 4-8 relays)
Electrical isolation relay action provides input and output electrical isolation
Installation structure plug-in card, installed in the standard rack of 193X system
Typical application scenarios
Control high-power electrical contactors, circuit breakers, excitation circuits, etc

As a physical output unit for executing logic

Send out alarm and status feedback signals

Realize remote electrical operation or system linkage control

Maintenance and troubleshooting suggestions
Relay contact adhesion: Use a multimeter to check if the contacts are mechanically stuck

Signal not responding: Check if the control signal input terminal is normal

Electromagnetic coil damage: Check if the resistance of the relay coil is normal (open circuit/short circuit)

Loose connectors: Check if the slots and connecting cables are secure

Substitutability and current situation
Status: AAG03 is a discontinued model from GE, mostly consisting of disassembled parts and inventory items in circulation

Compatibility: Before use, it is necessary to confirm whether the control voltage and current level match the system

Alternative solution: Consider external universal relay module and perform logic conversion
