193X460ADG02 control board

Brand:GE
Model:193X460ADG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

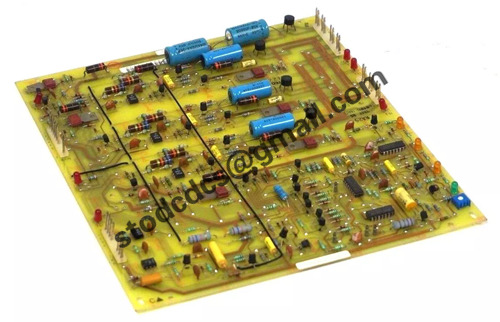

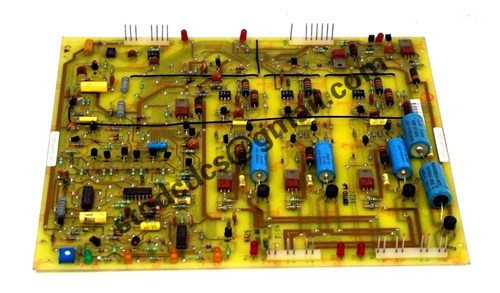

193X460ADG02 control board

Product manual:

Product model: 193X460ADG02
manufacturer: General Electric（GE）
Product Series: 193X Control System

Function description:
193X460ADG02 is a multifunctional control board in the GE 193X series control system, used for logic control, signal conditioning, status transmission, etc.

Main technical parameters (typical configuration):

Input power supply: Powered by the system (commonly ± 15V DC,+5V DC)

Signal type: mixed analog and digital

Output function: Control signal output, status feedback, relay drive

Interface method: plug-in card, compliant with GE 193X system backplane standard

Onboard components: integrated circuits, operational amplifiers, transistors, relays, precision resistors, electrolytic capacitors, etc

Application areas:

GE Mark series turbine control system (such as Mark I, Mark II)

Industrial motor speed control system (especially for large AC/DC motors)

Control rooms for thermal power plants and substations

Metallurgical, chemical, and heavy industry automation platforms

Usage and maintenance suggestions:

Power off when inserting the board to ensure that the interface is clean and free of foreign objects

Regularly check whether the capacitor has bulges or leaks

Use an oscilloscope to check for waveform abnormalities at the output terminal

When encountering logic errors or signal anomalies, it is important to focus on detecting control ICs and transistor components

If the board is damaged, it is recommended to search for prototype spare parts or contact a professional repair organization for refurbishment

Compatibility and Replacement Instructions:

Partially compatible with some GE 193X series control boards, depending on system version and control strategy

The model suffix G02 indicates a functional subdivision version, and the selection should correspond to the original system version

Currently, it is a discontinued product and the market mostly consists of second-hand or refurbished panels. It is recommended to confirm the integrity of the testing function when purchasing
