193X461AEG01 regulator circuit board

Product manual:

Concise technical information for GE 193X461AEG01 Regulator Circuit Board, suitable for equipment maintenance, spare parts management, or technical selection in industrial control systems:

PRODUCT INFORMATION
Product model: 193X461AEG01

manufacturer: General Electric (GE)

Product series: 193X series control system

Function Description
The 193X461AEG01 regulator circuit board is used to provide precise signal conditioning functionality in GE 193X series control systems.
This circuit board is typically used to regulate current, voltage, frequency, or other dynamic control signals.

Main technical parameters
Input signal: analog signal or digital signal (depending on system requirements)

Output signal: a regulated signal (such as voltage, current, frequency, etc.)

Working power supply: usually powered by the system main power supply (± 15V DC or+5V DC)

Installation method: Plug in card, compatible with GE 193X control system standard slot

Onboard components: including regulating circuits, operational amplifiers, precision capacitors, resistors, and other components

Application scope: It can work together with actuators, feedback sensors and other modules to achieve automatic adjustment function

application area
Automated control system: used to regulate control signals to ensure precise operation of equipment according to requirements

Power system: used for power regulation, equipment protection, and dynamic response

Industrial equipment: regulate signals such as current, voltage, frequency, etc. to ensure stable operation of the equipment

Generator set control: used in generator sets to ensure precise adjustment of output power and system parameters

Maintenance and inspection suggestions
Signal abnormality: Check if the power input and output signals match, eliminate power interference

Component aging: Check whether there is aging or damage to onboard operational amplifiers, resistors, capacitors, etc

Loose interface: Ensure that all plug-in interfaces are tightly and reliably connected to avoid poor contact

Poor adjustment accuracy: Check the feedback loop and adjustment circuit to ensure they are working properly

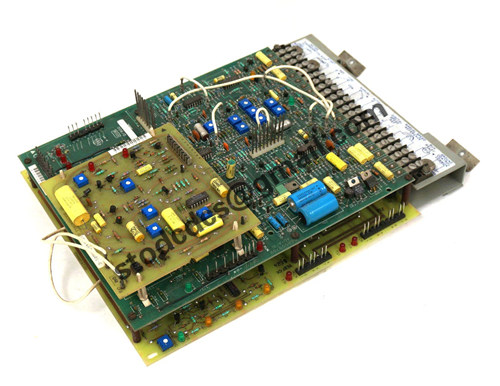

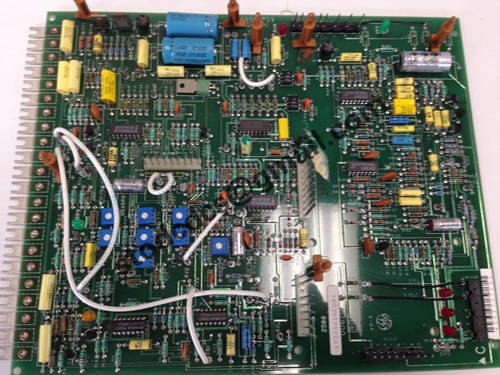

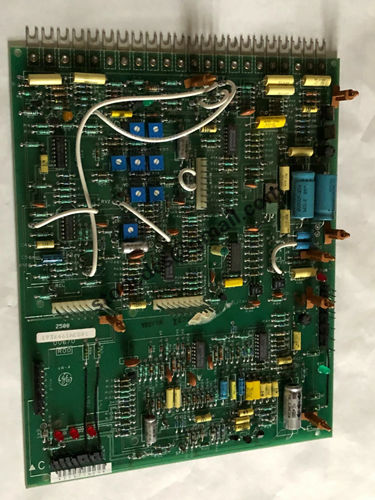

Product details picture:
