193X475AAG01 Phase Logic Board

Product manual:

Product Name: 193X475AAG01 Phase Logic Board
manufacturer: General Electric (GE)
Product Category: Control System Module/Phase Logic Control Board
Belonging series: 193X series
Function Description
193X475AAG01 is a phase logic board in industrial automation control systems, mainly used for the following functions:

Realize power phase sequence detection and phase synchronization judgment

Provide logical judgment output for driving or protecting the system

Used in conjunction with motor control systems or synchronous power supply systems

Suitable for multiphase motors, synchronous generators, or applications that require multi-channel synchronous control.

technical specifications
Supply voltage:+ 5V/± 15V DC (powered by the main system)

Signal input: multi-channel analog or digital phase input (usually three-phase AC signal)

Output format: TTL or control logic level signal

Working temperature: 0 ° C to 60 ° C

Installation method: Plug in board, suitable for GE 193X standard slot

Typical applications
Phase detection of synchronous power generation system

Phase logic synchronous control of multiple motors

Automatic Switching Logic Control of Power System

Industrial frequency converter or servo control logic judgment

Maintenance suggestions
Regularly check the card slots and contacts to ensure no looseness or oxidation

Check if the input signal is stable to avoid accidental triggering

Avoid damage to the board caused by power overvoltage or surge

If there is a logical judgment error, the relevant chips can be tested for aging or failure

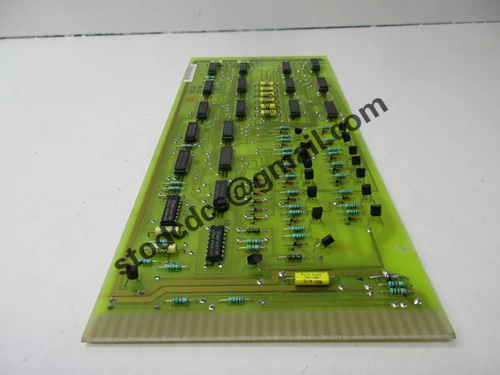

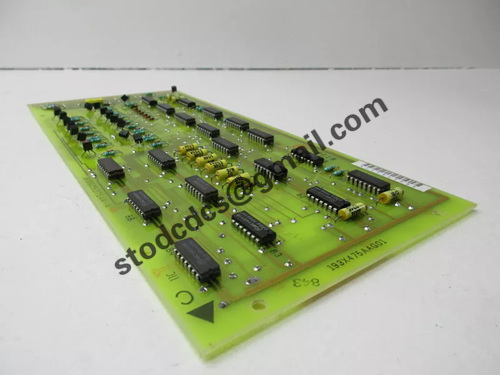

Product details picture:
