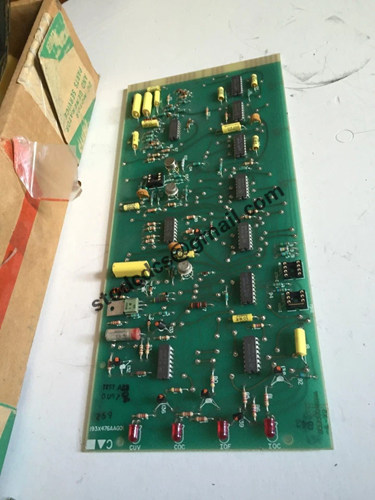

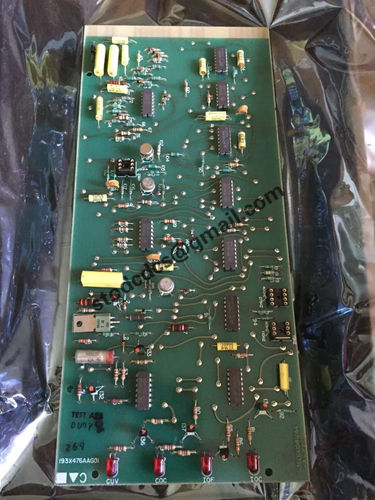

193X476AAG01 frequency conversion card

Brand:GE
Model:193X476AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X476AAG01 frequency conversion card

Product manual:

Product model: 193X476AAG01
193X476AAG01 is a variable frequency control module in the GE 193X control system,
The main function is to perform frequency conversion and control regulation in motor drive or speed control systems. The core functions include:

Convert fixed frequency AC power supply to adjustable frequency output

Control the operating speed and acceleration/deceleration curve of the electric motor

Provide overvoltage and overcurrent protection logic

Collaborate with other logic boards (such as phase logic board, regulator board) to achieve closed-loop control

Key technical parameters (typical values)

Parameter project technical indicators
Power requirement: ± 15V DC or uniformly powered by the system
Control mode: analog/digital input, control frequency output
The output frequency range is generally 0-400Hz (depending on the model)
Signal interface compatible with GE 193X control system slot
Installation method: plug-in card, compatible with GE control rack
Working environment temperature 0-60 ° C, industrial protection level
Typical application areas
Industrial frequency converter system (speed regulation, constant voltage and frequency control)

Frequency regulation unit in motor drive system

Load management and frequency regulation of generator sets

Intelligent speed regulation system for large units or loads such as fans and pumps

Maintenance and usage suggestions
Check if the power supply voltage is stable to avoid output frequency loss due to abnormal voltage

Regularly clean the pins and connectors to maintain stable signal transmission

Pay attention to whether the output frequency drifts and promptly detect the input quality of the main control signal

Alternative/Compatibility Suggestions
If the model is discontinued or difficult to supply, you can:

Inquire with GE authorized agents about inventory or substitute models with the same function

Choose a third-party industrial module compatible with frequency control function

If the entire system is upgraded, it can be changed to a modern PLC+VFD control architecture
