193X476AEG01 frequency converter board

Brand:GE
Model:193X476AEG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

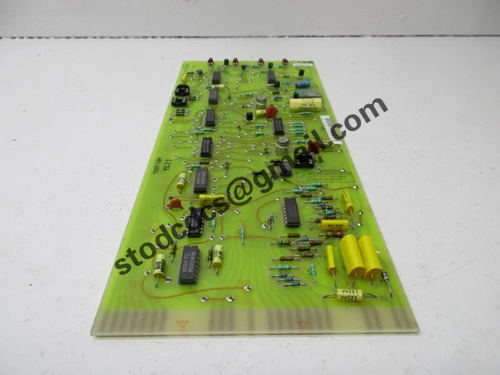

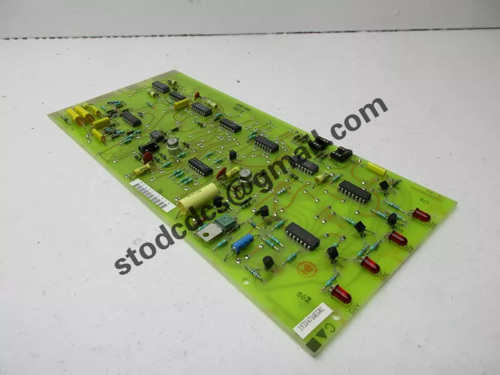

193X476AEG01 frequency converter board

Product manual:

Product model: 193X476AEG01

manufacturer: General Electric (GE)

Product Series: 193X Control System Series

Function Description
GE 193X476AEG01 is a variable frequency control module used in the GE 193X control system,
Mainly responsible for converting the control signals received by the system into variable frequency outputs, which are used to control the speed, frequency, or synchronous operation of the motor with the system frequency.
This module is commonly used in drive control and precision frequency regulation systems.

major function
Convert input signal to adjustable frequency output

Control the process of starting, accelerating, decelerating, and stopping the electric motor

Implement frequency closed-loop control (in conjunction with feedback board)

Provide overcurrent, overvoltage, and frequency limit protection functions

Used in conjunction with other 193X series cards (such as regulator board, logic board)

Technical parameters (typical values)
Supply voltage: ± 15V DC or+5V DC (supplied by the main power supply of the system)

Output frequency: 0-400Hz (depending on system settings)

Input type: Analog control signal or digital trigger signal

Installation method: Plug in card, suitable for GE 193X standard control framework

Environmental temperature range: 0-60 ° C

Onboard components: including frequency generator, power transistor, control logic circuit, filtering capacitor, etc

Typical applications
Electric motor speed control system
