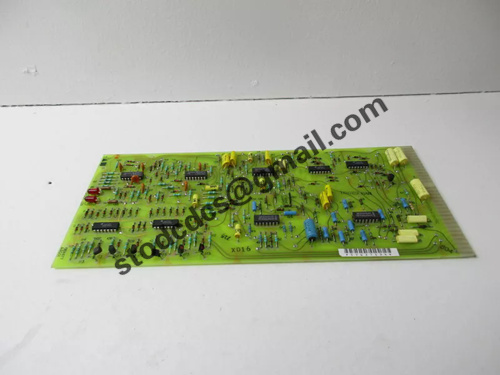

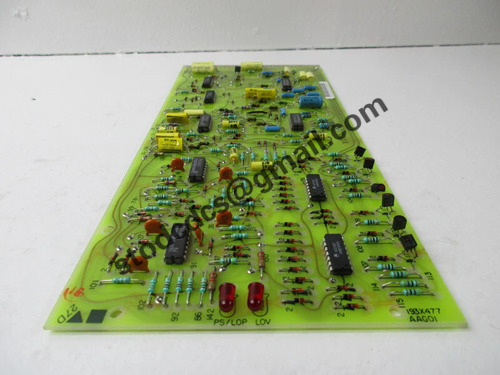

193X477AAG01 converter board

Brand:GE
Model:193X477AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X477AAG01 converter board

Product manual:

Product model: 193X477AAG01
manufacturer: General Electric (GE)
Product Series: 193X Industrial Control System Series
FUNCTIONAL OVERVIEW
GE 193X477AAG01 is a converter board used in industrial automation control systems, designed for the conversion and regulation of signal formats, voltage, current, or frequency.

Core functions
Conversion between analog and digital signals

Voltage level conversion (e.g. ± 15V to 0-5V conversion)

Frequency adjustment and buffering processing ensure stable signal transmission

Interface bridging function, used for signal matching between different control boards

In motor control systems, it can also be used as an intermediate regulator for PWM or speed signals

Technical parameters (typical)

Parameter description
Supply voltage ± 15V DC (powered by the main system)
Signal type input/output is analog voltage, frequency, or digital TTL signal
Interface type GE 193X series standard slot interface
Working temperature range: 0 ° C to 60 ° C
Structural form card insertion design, onboard multiplexer chip and conditioning circuit
Output protection has basic overvoltage/overcurrent protection mechanisms
Typical application scenarios
Speed signal matching and adjustment in electric motor control system

Signal relay and isolation conversion module

Control signal bridging between multiple module systems

Used as a submodule in the Speedtronic series or EX2000 drive system

Maintenance suggestions
Regularly check whether the conversion accuracy and signal response speed are normal

Confirm that the card insertion connection is secure and free from oxidation or dust contamination

When signal loss or abnormal waveform occurs, check the status of the converter chip and filter circuit

Prevent grounding issues and ensure consistent reference levels for input/output terminals
