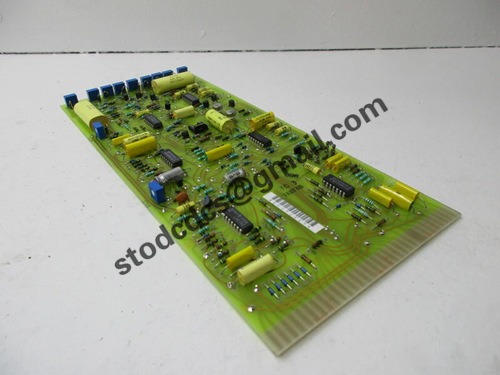

193X488ADG01 interface card

Brand:GE
Model:193X488ADG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X488ADG01 interface card

Product manual:

The GE 193X488ADG01 interface card is a communication and signal adaptation module used in the GE 193X series control system. Its main function is to achieve signal bridging, protocol conversion, logic isolation, and other functions between different modules to ensure the overall stable operation of the system and complete signal transmission.

Core Features
Provide multi-channel input/output interfaces for data exchange between systems

Support buffering, isolation, and conversion of analog and digital signals

Having basic electrical protection functions to avoid signal conflicts and interference

Compatible with multiple modules in GE control system (such as control board, adjustment board, frequency converter board) for linkage

Plug in card design for easy installation, replacement, and maintenance

Technical parameters (typical)

Parameter Category Parameter Description
Working voltage ± 15V DC or 5V DC (system power supply)
Input type TTL/CMOS digital signal, analog voltage signal (depending on configuration)
Output interface with multiple data/control pins, connected to other 193X boards
Interface form Edge connector
Working temperature 0-60 ° C
Electrical protection with surge suppression and overcurrent protection circuit
PCB structure multi-layer printed circuit board, anti-interference design
Typical applications
Signal bridging: connecting the control board with actuators, sensors, or upper computer systems

Protocol adaptation: used for conversion and compatibility between different signal standards (such as TTL) ↔ RS232）

Logical Relay: Implementing Coordination and Sequential Management of Multiple Control Commands

System Expansion Interface: Provides additional input/output channels for the main control system

Maintenance and usage suggestions
Avoid contact with static electricity, please take anti-static protection before plugging or unplugging

Regularly check if the interface is loose, oxidized, or damaged

If there is a loss of signal or instruction failure, please check the main power supply, capacitor, and signal chip

The waveform of interface data can be monitored through an oscilloscope to determine if it is normal
