193X489AAG01 system card

Product manual:

FUNCTIONAL OVERVIEW
GE 193X489AAG01 is a critical system control module used in GE industrial control systems, typically serving as the core board for central coordination and communication,
System logic management: As the system control center, it handles and coordinates the logical relationships between various boards

Communication interface bridging: achieving signal synchronization, data sharing, and command transmission

Fault detection and interrupt management: capable of detecting system errors, issuing alarms or protection signals

Power supply allocation and signal distribution: managing signal lines and partial control power distribution

Support self diagnostic function (according to system configuration)

Technical parameters (typical)

Project parameter description
Working voltage ± 15V or 5V DC (system power supply)
Input signal type TTL, analog signal, control instruction
Output interface standard 193X slot output, connected to control board, interface board, etc
Board type: multi-layer PCB, plug-in structure
Working temperature range: 0 ° C to 60 ° C
Multi level filtering and signal buffering protection for anti-interference design
System compatibility is compatible with all motherboards, driver boards, and interface boards of GE 193X for operation
Typical application scenarios
Central Logic Processing Module of GE Speedtronic Control System

Management control signal flow and feedback scheduling in the drive system

Bridge hub between multiple control boards

Logic main control module of industrial automation system

Maintenance suggestions
Check the contact of the slot to ensure there is no looseness, dust, or oxidation

If there is a system communication abnormality, check whether the system card is powered normally

Oscilloscope or logic analyzer can be used to detect whether the output pins have standard pulse output

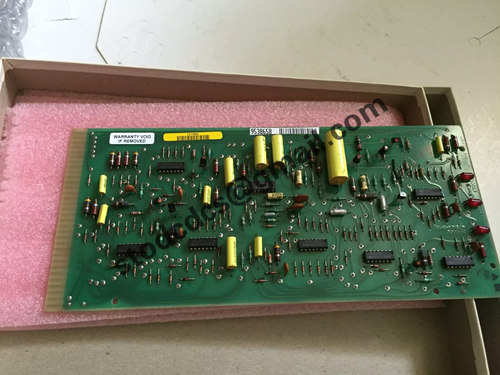

Product details picture:
