193X526AAG01 power supply board

Product manual:

PRODUCT FUNCTION
GE 193X526AAG01 is a stable power supply board used in the GE 193X control system.

Main characteristics
Multi channel output: supports ± 15V+ 5V and other voltage outputs

High stability: Built in voltage regulator chip and filtering circuit, providing low ripple and low noise voltage

Overcurrent protection: equipped with basic current limiting and short-circuit protection functions

Thermal protection design: Some versions have over temperature protection to extend their service life

Plug in structure: easy to replace and maintain, supports standard slots in GE control framework

Technical specification parameters (typical)

Parameter description
Input voltage AC 115V/230V (or provided by system transformer)
Output voltage+5V, ± 15V DC (typical)
The output current varies depending on the load condition, with a maximum of approximately 3~5A (voltage of each circuit)
Stability ≤ ± 1% load adjustment rate
Ripple noise ≤ 50mVp-p (+5V)
Protection functions include overcurrent, short circuit, and overheating protection
Cooling method: natural air cooling or auxiliary air cooling (depending on the system)
PCB form: multi-layer PCB with filtering, power management, and voltage stabilizing devices
Typical application scenarios
Power supply for control boards (such as 193X series CPUs, drivers, and regulating boards)

Core power module of industrial drive system

Compatible with GE Speedtronic and Mark I~V series control systems

As a power source in large motor and turbine control systems

Maintenance and usage suggestions
Regularly inspect capacitors and voltage regulators for bulges and leaks

The plugging and unplugging operation should be carried out under power-off conditions to avoid triggering the protection circuit

A multimeter or oscilloscope can be used to check whether the output voltage is stable and whether the ripple is too large

Ensure good heat dissipation and install fans if necessary to avoid overheating

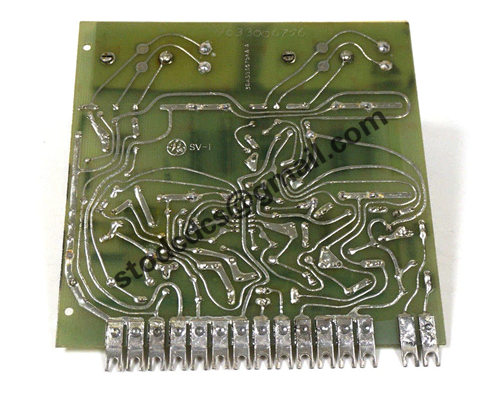

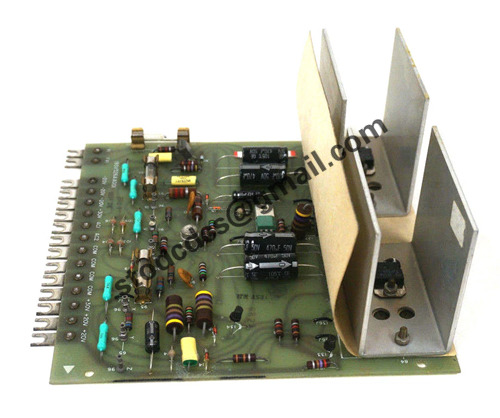

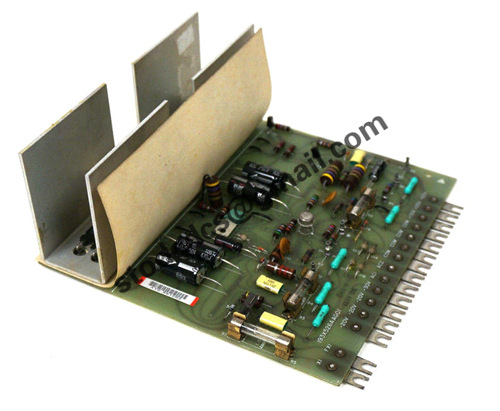

Product details picture:
