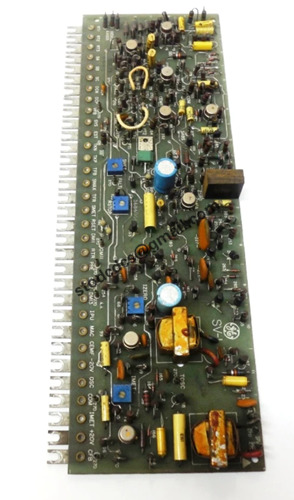

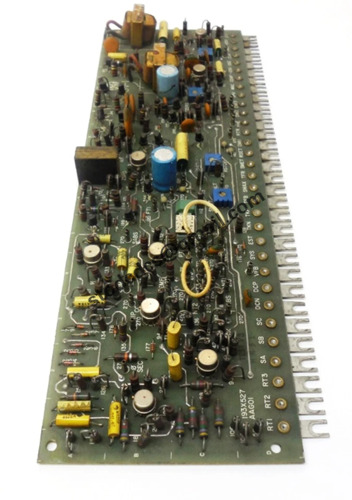

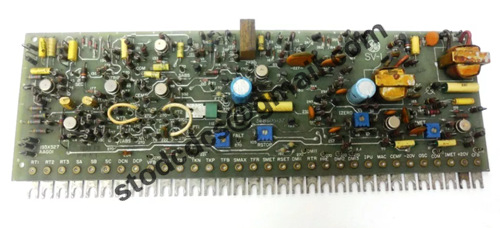

193X527AAG01 interface module

Brand:GE
Model:193X527AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X527AAG01 interface module

Product manual:

GE 193X527AAG01 is a signal interface module specifically designed for GE industrial control platforms, primarily used to provide reliable signal input/output (I/O) bridging and signal adaptation between the main control system (such as controllers, regulators, driver boards) and external subsystems or devices. It serves as a communication bridge in the system.

Main functional features
Provide isolation and buffering for analog or digital signals

Adapt to the upper control board and external devices (such as sensors, actuators, control terminals)

Can be used for adjusting or converting voltage/current signals

Built in anti-interference circuit to enhance system stability

Supports multiple industrial grade input/output specifications (TTL/5V/24V)

Technical specification parameters (typical values)

Parameter Name Parameter Description
Interface type: Analog I/O/Digital I/O (depending on specific system configuration)
Input channels 8-16 (typical)
Output channels 8-16 (typical)
Input voltage range DC 5V/12V/24V (supports signal isolation)
Maximum output drive capability of 50-100mA (depending on interface configuration)
Communication characteristics and control motherboard parallel bus or dedicated signal line connection
Cooling method: natural convection
Installation method: plug-in card, standard gold finger interface
PCB design multi-layer board with isolation circuit and filtering device
application area
Signal input/output management in industrial automation systems

Signal adaptation/conversion interface for GE 193X series system

Used to transmit control instructions to actuators and receive feedback signals from sensors

Adapt to various analog/digital field devices, such as temperature sensors, relays, limit switches, etc

Typical usage system
GE Speedtronic Control System

GE Mark II~V Control Framework

Power plant turbine control, industrial frequency conversion control system

Used in conjunction with regulators, power boards, and driver boards to form a complete closed-loop control
