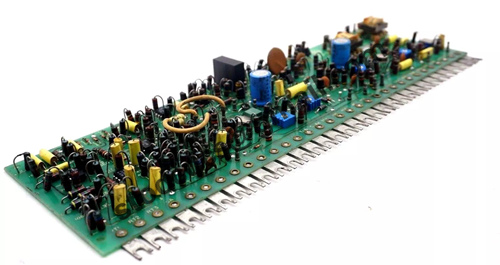

193X527ACG01 interface board

Brand:GE
Model:193X527ACG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X527ACG01 interface board

Product manual:

GE 193X527ACG01 is an interface board used in industrial automation control systems, mainly for effectively connecting and converting signal inputs and outputs between the main control system and external devices.

Main functional features
Signal Conversion and Adaptation: Provides conversion between different voltages and signal formats to ensure compatibility between the control system and external devices

Input/output interface: Provides multiple analog and digital signal inputs and outputs, supporting most common industrial signal types (such as 5V, 12V, 24V, etc.)

Signal isolation: Built in signal isolation and protection circuits ensure stable signal transmission and avoid external interference

Anti interference capability: suppression of electromagnetic interference and high-frequency noise to ensure signal reliability

Compact design: suitable for various control system applications, especially for GE 193X series platforms

Technical specifications and parameters

Parameter Name Parameter Description
Interface type: Analog signal, digital signal input/output
Number of input channels: 8 analog inputs, 8 digital inputs (typical)
Number of output channels: 8 analog outputs, 8 digital outputs (typical)
Input voltage range 5V, 12V, 24V DC (compatible with multiple devices)
Output voltage range 5V, 12V, 24V DC (compatible with device requirements)
Signal isolation method with electrical isolation design to reduce noise and interference
Cooling method: natural air cooling (depending on the installation environment)
Installation method card insertion design, compatible with GE control system framework
Working temperature range: 0 ° C to 70 ° C
Protection functions include overcurrent, overvoltage, and short-circuit protection
PCB design with multi-layer design, including filtering and protection circuits
Application scenarios
Industrial automation control system: used to connect various sensors, actuators, control modules, and peripheral devices

GE 193X series platform: suitable for GE's 193X series control systems (such as motor drive, PLC control, temperature regulation, etc.)
