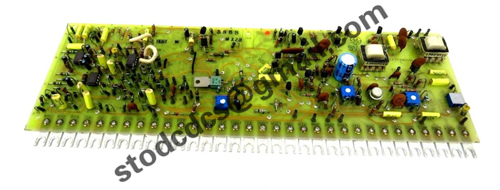

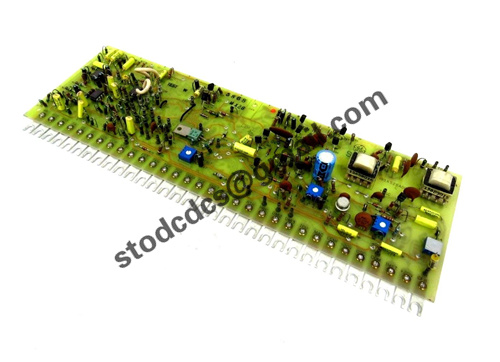

193X528ADG01 interface card

Brand:GE
Model:193X528ADG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X528ADG01 interface card

Product manual:

What is the GE 193X528ADG01 interface card
An important module in the GE 193X series industrial automation system, responsible for signal transmission and conversion between the control system and external devices.
It can adapt to different types of input and output devices and ensure reliable data transmission.

Main functional features
Signal adaptation and conversion: capable of processing various types of input and output signals,
Including analog and digital signals, ensuring compatibility and stable transmission between different devices

Multi channel support: Supports multiple input and output channels, capable of processing multiple signal streams simultaneously,
Enhance the signal processing capability of the system

Electrical isolation design: Built in electrical isolation function, effectively isolating input and output devices from control systems,
Reduce interference and ensure signal stability

Modular design: easy to integrate and replace, compatible with other modules in the GE 193X series,
Has strong scalability

High reliability and durability: The design takes into account the stringent requirements of industrial environments,
Equipped with anti electromagnetic interference, overload protection and other characteristics, ensuring long-term stable operation

Technical specifications and parameters

Parameter Name Parameter Description
Interface type: Analog signal, digital signal input/output
8 analog inputs and 8 digital inputs (standard configuration)
Number of output channels: 8 analog outputs, 8 digital outputs (standard configuration)
Input voltage range 5V, 12V, 24V DC (compatible with various devices)
Output voltage range 5V, 12V, 24V DC (suitable for different device requirements)
The signal isolation method is designed with built-in electrical isolation to reduce interference and noise effects
Working temperature range: 0 ° C to 70 ° C
Current carrying capacity: maximum 50mA per channel (digital interface)
Installation method: card insertion design, standard gold finger interface
Size based on specific module design specifications
Cooling method: natural convection cooling
