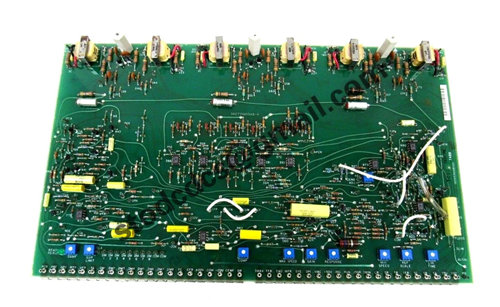

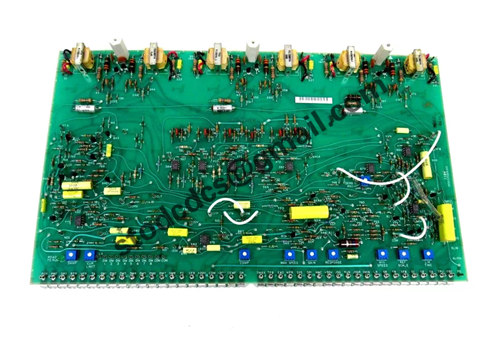

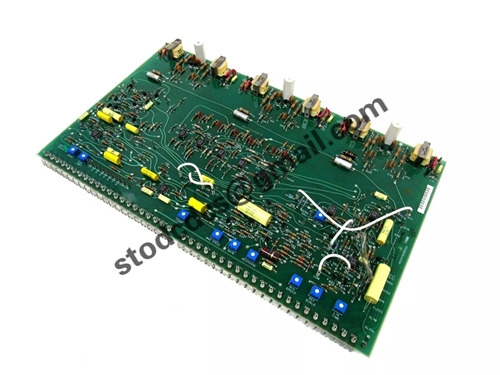

193X530BBG01 control board

Brand:GE
Model:193X530BBG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X530BBG01 control board

Product manual:

193X530BBG01 is a core control board in the GE 193X series,
Designed to work with GE DC drive systems to perform precise control logic processing and signal coordination tasks.
This board serves multiple functions in the entire system, including coordination, driving, and monitoring, and is typically used as a central or secondary control core.

major function
Processing feedback signals such as speed, current, torque, etc

Execute control logic and output control instructions to the drive unit

Provide fault detection and alarm response functions

Implement communication and coordination with peripheral modules such as interface cards and power modules

Support precision control (closed-loop control) and state adjustment

Technical parameters (typical values, for reference only)

Parameter item description
Power supply voltage+15V/+24V DC (depending on system configuration)
Control signal type: analog/digital mixed signal
Control mode: current control/voltage control/open-loop/closed-loop
Temperature range 0 ° C~70 ° C
Response time less than 10ms
Installation structure slot installation with boot interface
Typical applications
GE Adjustable Speed Motor Control System

Industrial DC Drive Speed Control System

automation production equipment

Winding machine, elevator, and conveyor equipment control center

Lifting equipment and large electromechanical control systems

Precautions for use
The control board must be matched with the corresponding GE system model for use

To avoid static electricity and short circuit risks, please ensure proper grounding protection before installation

The use of shielded cables in communication interfaces can enhance anti-interference capabilities

If a system alarm occurs, prioritize checking the status indication of the control board
