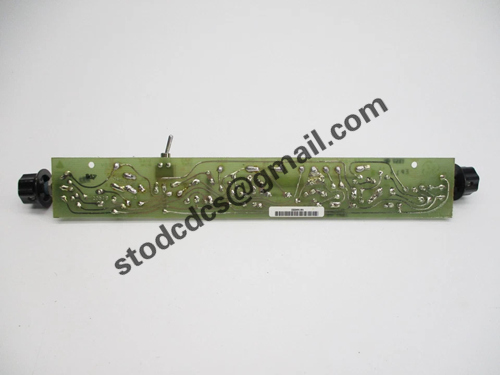

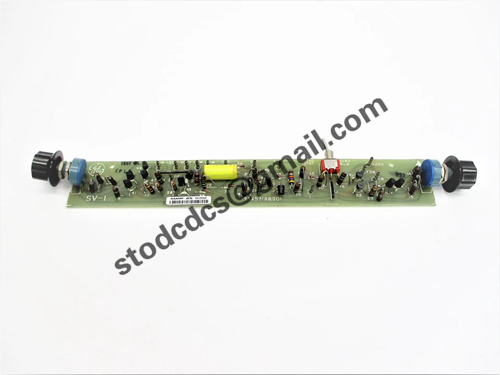

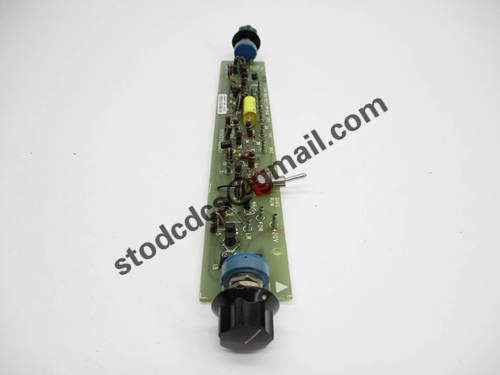

193X531ABG01 circuit board

Brand:GE
Model:193X531ABG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X531ABG01 circuit board

Product manual:

GE 193X531ABG01 is a functional circuit control board,
Belonging to the GE 193X module series, it is widely used in industrial automation and drive control systems.
It mainly performs tasks such as signal processing, control logic execution, and system coordination,
Usually used as a sub control unit or auxiliary logic board, compatible with GE's DC drive or speed control system.

major function
Receive and process analog and digital input signals

Output control signals to execution components or other boards (such as drivers, interface modules)

Provide basic system logic judgment and state control functions

Support specific protection functions (such as overvoltage and undervoltage signal response)

Form a complete control system with the main control board, interface cards, etc

Typical technical parameters (for reference)

Parameter item description
Working voltage 15V/24V DC (depending on module application)
Signal type: analog signal+digital signal mixed processing
Control logic relay logic/transistor logic circuit
Installation method slot type, with edge connector
Working environment: 0-70 ° C, dry and dust-free environment
Communication interface connected to GE system board standard bus
application area
GE Adjustable Speed DC Drive System

Motor start/stop control system

Industrial equipment status detection and feedback processing

Power equipment control panel

Auxiliary modules in large-scale automation equipment

Usage and maintenance suggestions
Confirm installation direction and slot compatibility to avoid accidental insertion

During the installation process, anti-static measures should be taken to prevent damage to the components

Regularly check whether the signal path and connectors are in good contact

If the module does not respond, check the power supply and interface status
