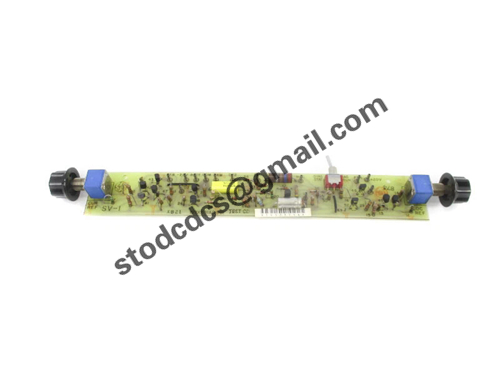

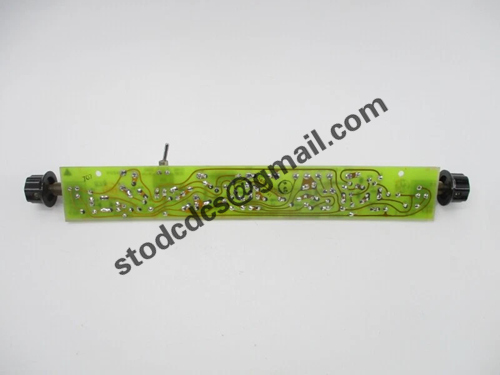

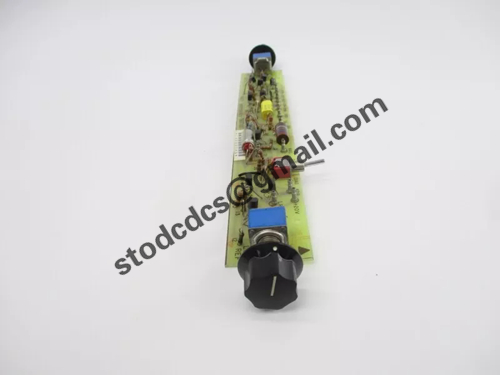

193X531ADG01 electronic diagnostic card

Brand:GE
Model:193X531ADG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X531ADG01 electronic diagnostic card

Product manual:

193X531ADG01 is an electronic diagnostic module developed by GE for its industrial drive and control systems. It is typically used in conjunction with GE DC speed control drives,

Main functional features
System signal diagnosis: Real time collection of data from multiple key signal points

LED status indication: Display various operating statuses and alarm information through onboard lights

Interface testing point: Provide multiple signal output points for easy detection by oscilloscopes or multimeters

Fault tracing assistance: used to quickly locate possible anomalies or faulty segments in the control chain

Modular design: easy to replace and maintain, compatible with GE 193X series chassis architecture

Technical parameters (reference values)

Project parameter description
Working voltage+15V/+24V DC (depending on system power supply)
Signal support type: Analog signal&Digital signal
Indicator light type LED indicates system status, faults, communication, etc
Installation method: plug-in card, compatible with GE control system rack
Working temperature range: 0 ℃~+70 ℃
Interface type standard GE plug-in gold finger interface+test lead out point
application area
GE thyristor speed control DC drive system

Debugging and maintenance of industrial control systems

Signal diagnosis and analysis on engineering sites

Automation control systems for industries such as power, metallurgy, and petrochemicals

Maintenance and usage suggestion

Pay attention to anti-static operation during use to avoid damaging onboard components

When there is a continuous abnormal indication, cooperate with the control system log to analyze it together
