193X532ADG01 on-site control board

Brand:GE
Model:193X532ADG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

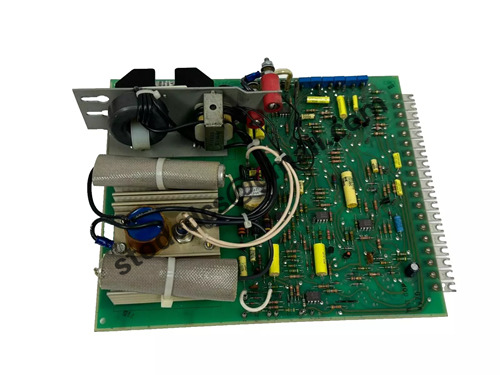

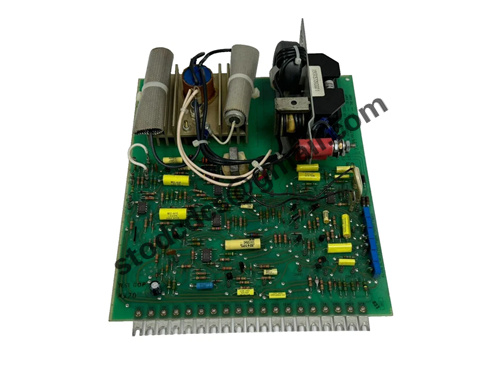

193X532ADG01 on-site control board

Product manual:

GE 193X532ADG01 is a field control board in the General Electric 193X series,
Widely used in early GE industrial drive systems, especially in DC and AC drive devices
In the process control system, it plays a core role in on-site signal processing and control instruction execution.
This board is usually installed in the control rack or control cabinet and operates in conjunction with other functional modules within the system.

Technical specifications and functional features
Control type: mainly analog signal control, supplemented by some digital logic functions

Input signals: standard industrial analog signals (such as 0-10V, 4-20mA), digital contacts

Output signals: control voltage/current, switch signal, logic control signal

Working voltage: generally ± 15V DC (system power supply)

Adjustment function: onboard multi turn potentiometer, used to adjust parameters such as gain, zero point, response, etc

Circuit composition: Using discrete electronic components (operational amplifiers, transistors, capacitors, resistors, etc.) to construct stable control logic

Interface form: Card type gold finger design, connected to the back panel of GE control chassis

Status indicator: Some versions come with status LED lights for debugging and running instructions

Application scope
GE Early Mark Series Drive Control System

DC/AC motor speed control system

Motor control in metallurgical industry

Power plant excitation control system

Control of actuators in continuous control processes such as chemical, papermaking, and energy industries

Installation and usage precautions
Ensure that the system is completely powered off before installation, and avoid electric shock or damage to the interface during the plugging and unplugging process.

Pay attention to anti-static treatment during use to prevent static discharge from damaging circuit components.

Before use, carefully check whether the wiring definition, input and output signal types of the board are consistent with the system requirements.
