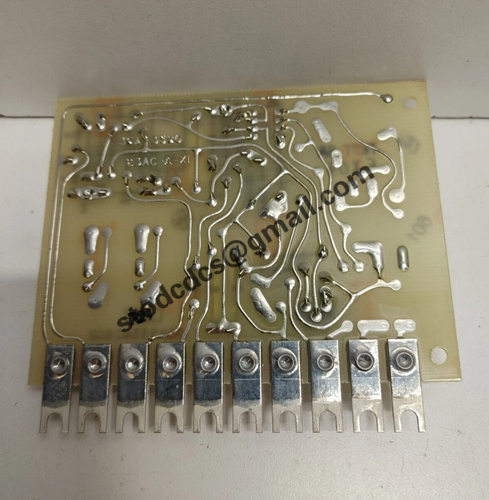

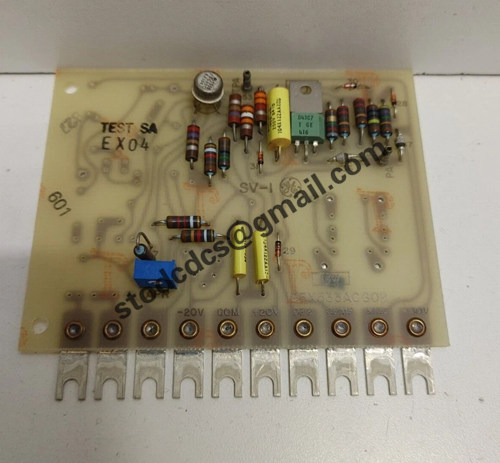

193x533ACG02 electronic PC board component

Brand:GE
Model:193x533ACG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193x533ACG02 electronic PC board component

Product manual:

GE 193X533ACG02 is an electronic circuit board component in the 193X series control system produced by General Electric in the United States,
Widely used in GE's DC drive systems, process control systems, and old industrial automation equipment.
As a functional PC control board, this module mainly undertakes signal conditioning
Logical judgment, control output, and other tasks are key components of GE's industrial control architecture.

Technical parameters and functional characteristics
Product type: Printed Circuit Board Assembly

Installation method: Plug in card design, connected to the system motherboard backplane through the gold finger interface

Control mode: mainly analog control, including some digital signal processing

Power input: standard ± 15V DC (system power supply uniformly distributed)

Signal input: voltage/current analog quantity, digital control contact signal

Signal output: control voltage, trigger signal, relay drive logic, etc

Onboard components: including multiple sets of discrete components such as precision resistors, capacitors, potentiometers, operational amplifiers, transistors, etc

Adjustment function: equipped with multiple sets of fine adjustment potentiometers for setting control parameters such as gain, offset, and response time

Status display: Some versions come with LED status lights to assist in on-site debugging and operation monitoring

Application scenarios
GE Mark Series DC/AC Drive Control System

Motor speed control and excitation control circuit

Automation control of industrial metallurgical system

Continuous process industrial systems such as petrochemicals, power plants, and papermaking

Maintenance and replacement project for old GE automation equipment

Installation and commissioning precautions
Before installation, the power should be completely cut off to ensure system safety and avoid arcing or component damage during insertion and removal

Wear anti-static rings during maintenance and debugging to prevent static electricity from damaging onboard components

After inserting the board, it is necessary to check whether the gold finger interface is in good contact to avoid poor contact and system abnormalities
