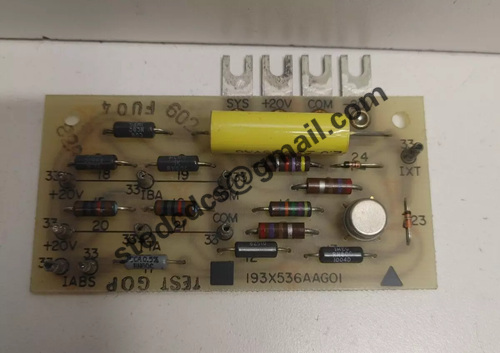

193X536AAG01 transition board

Brand:GE
Model:193X536AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X536AAG01 transition board

Product manual:

GE 193X536AAG01 is a specialized transition board in the 193X series automation control system produced by General Electric in the United States.
This module usually serves as an intermediary interface board between the main control board and the signal execution unit,
Used to complete functions such as signal extraction, conversion, isolation, buffering, or physical position transition,
It is an indispensable connecting component in the entire industrial drive control system.

Technical parameters and structural characteristics
Product type: Transition Board/Interface Conversion Board

Adaptation System: GE 193X Series Automation Control System

Structural form: Plug in PCB module with multiple gold finger ports and external pin interfaces

Functional positioning:

Transition and extraction of signals from control board to peripherals

Summarize module signals and provide feedback to the main control module

Electrical signal buffering or optical isolation

Interface type: One side is a standard gold finger slot interface, and the other side is a screw terminal or multi-core plug-in connection

Applicable signal types: analog signal, digital control signal, power transmission cable, etc

Working voltage range: Depending on the system power supply level (typically ± 15V DC or 24V control power supply)

Temperature resistance range: industrial grade, typically -20 ° C~+70 ° C

Application scenarios
GE DC/AC motor drive control system
