193X543ADG01 relay module
Brand:GE
Model:193X543ADG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
193X543ADG01 relay module
Product manual:
Technical parameters and functional characteristics
Product model: 193X543ADG01
Module type: Relay Board Module
Circuit structure: composed of multiple electromagnetic relays, driving transistors, protective diodes, capacitors, resistors, etc
Control logic: Receive trigger signals from the main control board to control the on/off status of relays
Number of relay channels: usually 4-8 channels (depending on the version)
Relay type: Electromagnetic dry contact with normally open (NO)/normally closed (NC) terminals
Drive voltage:+24V DC or ± 15V DC provided by the system (depending on the system configuration)
Response time: Typical relay pull in/release time is 10-20ms
Load capacity: Each relay usually supports switching between 1~2A (AC or DC load)
Working temperature range: -20 ℃~+70 ℃
Onboard protection: equipped with a freewheeling diode to protect the relay coil and prevent device damage caused by induced voltage
Interface form: Connect the system backplane through a gold finger slot, or use screw terminals for external wiring
function
Control logic execution: Receive system logic signals to perform operations such as starting, stopping, and fault cutting of equipment
Status indication: Some modules are equipped with indicator lights to display the relay action status
Safe shutdown: used for power disconnection control in situations such as overload, malfunction, emergency stop, etc
Multi channel control: can independently control multiple sets of circuits to achieve multiple logic output functions
application area
GE Mark Series Drive Control System
Industrial Motor Control Center (MCC)
Inverter and rectifier control system
Power switching/alarm system in automated production line
Control systems for heavy industries such as petrochemicals, metallurgy, power plants, cement, and papermaking

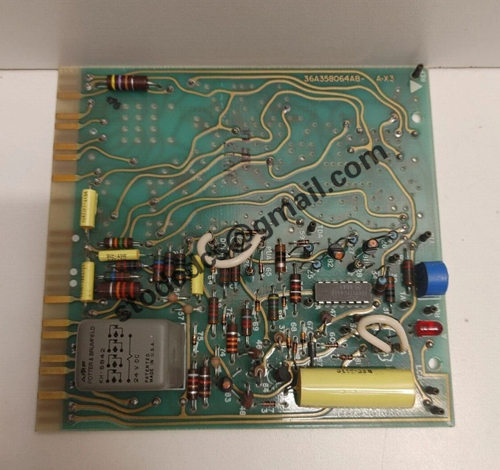

Product details picture:
