193X643ADG223 control card

Product manual:

GE 193X643ADG223 is an important control card in the General Electric 193X series, widely used in GE's industrial automation systems, especially playing a key role in controlling motors, drive systems, and coordinating with peripheral devices. This control card ensures stable and precise operation of the system through efficient signal processing and control algorithms.

Basic parameters
Model: 193X643ADG223

Name: Control Card

Series: GE 193X series control module

Manufacturer: General Electric (GE)

Power requirements:+5V DC/± 15V DC (provided through the system power module)

Interface type: Standard gold finger interface, slot type installation

Working temperature range: -20 ° C to+70 ° C

Exterior specifications: Compliant with standard 193X series dimensions, suitable for industrial automation cabinets

Functional Features
Core control function: As the core module of the control system, it provides signal processing, data operation, and output logic functions;

Signal conditioning: supports multiple input signal conditioning, including the acquisition and conversion of analog and digital signals;

Precise control: Built in high-precision algorithms ensure that the system can maintain stable operation under various working conditions;

Modular design: slot style design, easy to integrate into different control system architectures, supports hot swapping function;

Status indication function: Provide LED status indicator lights for easy on-site maintenance and fault diagnosis;

Strong compatibility: Strong compatibility with other GE control modules and external devices,
Can be flexibly used in different industrial applications.

application area
GE Mark II/Mark IV Industrial Drive System

Automatic control system for power plants (such as turbine and generator control)

High performance automated production line control

Large scale mechanical control systems in industries such as petrochemicals, metallurgy, and mining

High precision speed control system

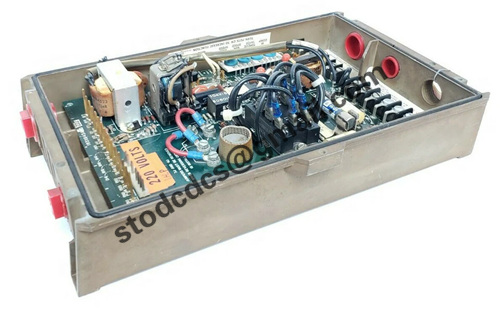

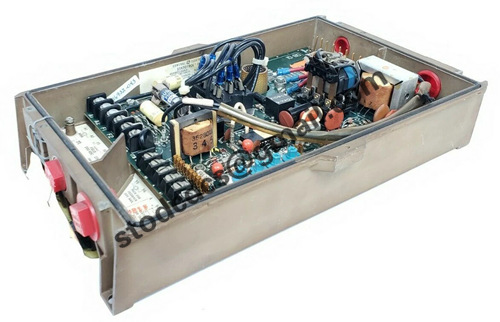

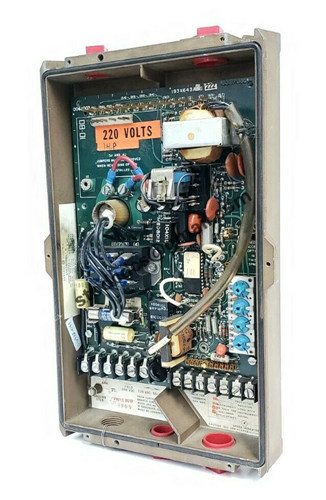

Product details picture:
