193X703ACG04 Statistical Board

Product manual:

GE 193X703ACG04 Statistics Board Technical Description
Product model: 193X703ACG04
Product type: Statistics Board
Manufacturer: General Electric (GE)
Series: 193X Control Module Series
Typical applications: Early industrial drive systems (such as DC drives, Speedtronic systems)

major function
Statistics, detection, and logical processing of input signals;

Used for statistical analysis of the number of electrical state changes (such as parameters such as current, pulse, speed, etc.);

Trigger subsequent logic, such as relay action and alarm signal output;

Integrate with the control system to achieve status monitoring and protection functions.

Technical characteristics (typical)
Input signal types: analog signal, voltage signal, digital pulse signal;

Logic output: TTL or relay control signal (depending on the design version);

Control voltage: usually ± 15VDC, 24VDC (depending on the system power supply);

Interface method: Gold finger edge connector, used for inserting into the main control rack;

Circuit structure: The board contains operational amplifiers, capacitors, resistors, comparators, and transistor circuits, etc;

Compatible module: Can be used in conjunction with other modules in the 193X series, such as relay boards and amplifier boards.

Application scenarios
GE Mark series turbine control system;

Large DC drive control system;

Early state detection modules for electrical or mechanical control equipment;

Signal analysis and abnormal response module in industrial equipment.

Operation and maintenance suggestions
Regular inspection: Confirm whether the input signal processing is normal and check whether the statistical logic is invalid;

Avoid electromagnetic interference and humid environments;

When there are statistical errors, slow movements, or no output, consider replacing the entire board;

If there are burn marks on the board, it may be caused by high external signal voltage.

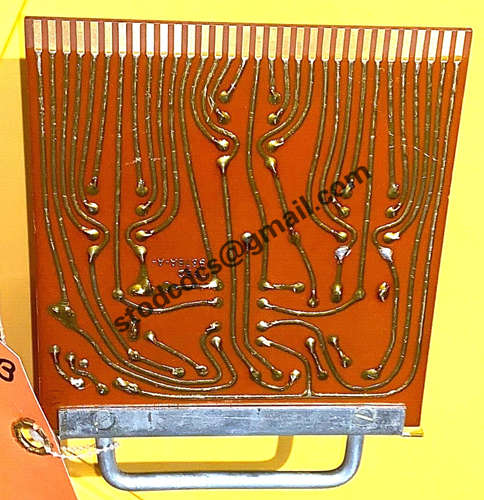

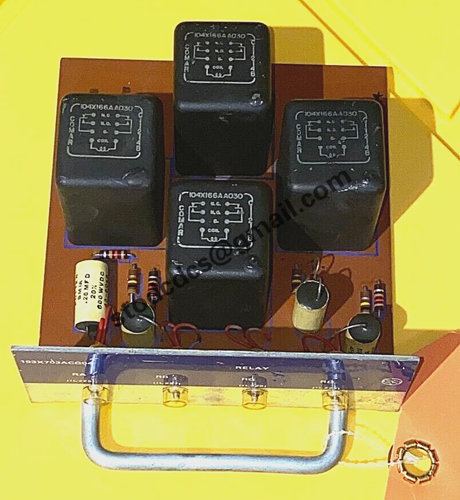

Product details picture:
