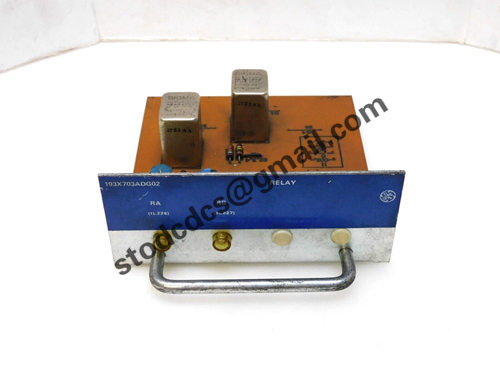

193X703ADG02 Relay Board

Brand:GE
Model:193X703ADG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X703ADG02 Relay Board

Product manual:

Technical Description of GE 193X703ADG02 Relay Board
Product model: 193X703ADG02
Product Name: Relay Board
Manufacturer: General Electric (GE)
Product Series: 193X Control Card Series
Typical applications: Drive control system, state switching, signal relay and alarm interlock control

1、 Product Features
193X703ADG02 is a multi-channel relay control board in the GE 193X series, mainly used for:

Receive logic control signals and control multiple relay actions;

Realize remote control, interlocking protection, and fault isolation of electrical equipment;

Collaborate with other control boards (such as AAG, ACG, BAG, etc.) to complete the complete control logic.

2、 Typical technical parameters
Parameter project description
Control input digital control signal (from controller or logic circuit)
Output interface dry contact relay output (usually normally open NO or normally closed NC)
The control voltage is usually 24V DC or ± 15V DC (depending on the system configuration)

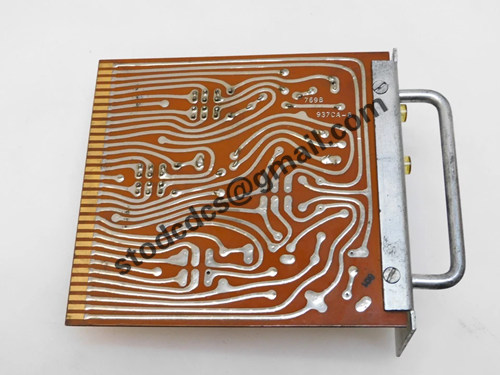

Installation method: Plug in gold finger connection, compatible with 193X main control rack

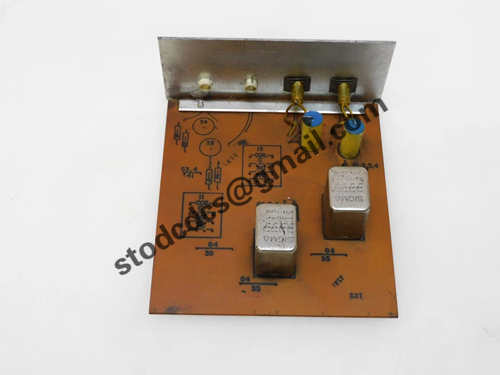

Multiple small relays, resistors, capacitors, transistors, freewheeling diodes, etc. are configured on the board

3、 Actual application scenarios
Early GE DC drive control systems (such as DC2000 or similar systems);

Turbine automation control system (Speedtronic Mark series);

Logic switching module or remote relay control in industrial control cabinets;

Used for motor start stop, valve switch, fault output alarm and other action logic.

4、 Precautions for use
Please ensure that the ambient temperature and humidity are within the allowable range of the board;

Before connecting with the main system, please verify that the model is completely consistent (ADG02 ≠ ADG01);

If replacing old modules, refer to the original control diagram or wiring diagram to avoid misconnection;

When storing, please be anti-static, moisture-proof, dust-proof, and avoid rusting or failure of the relay.
